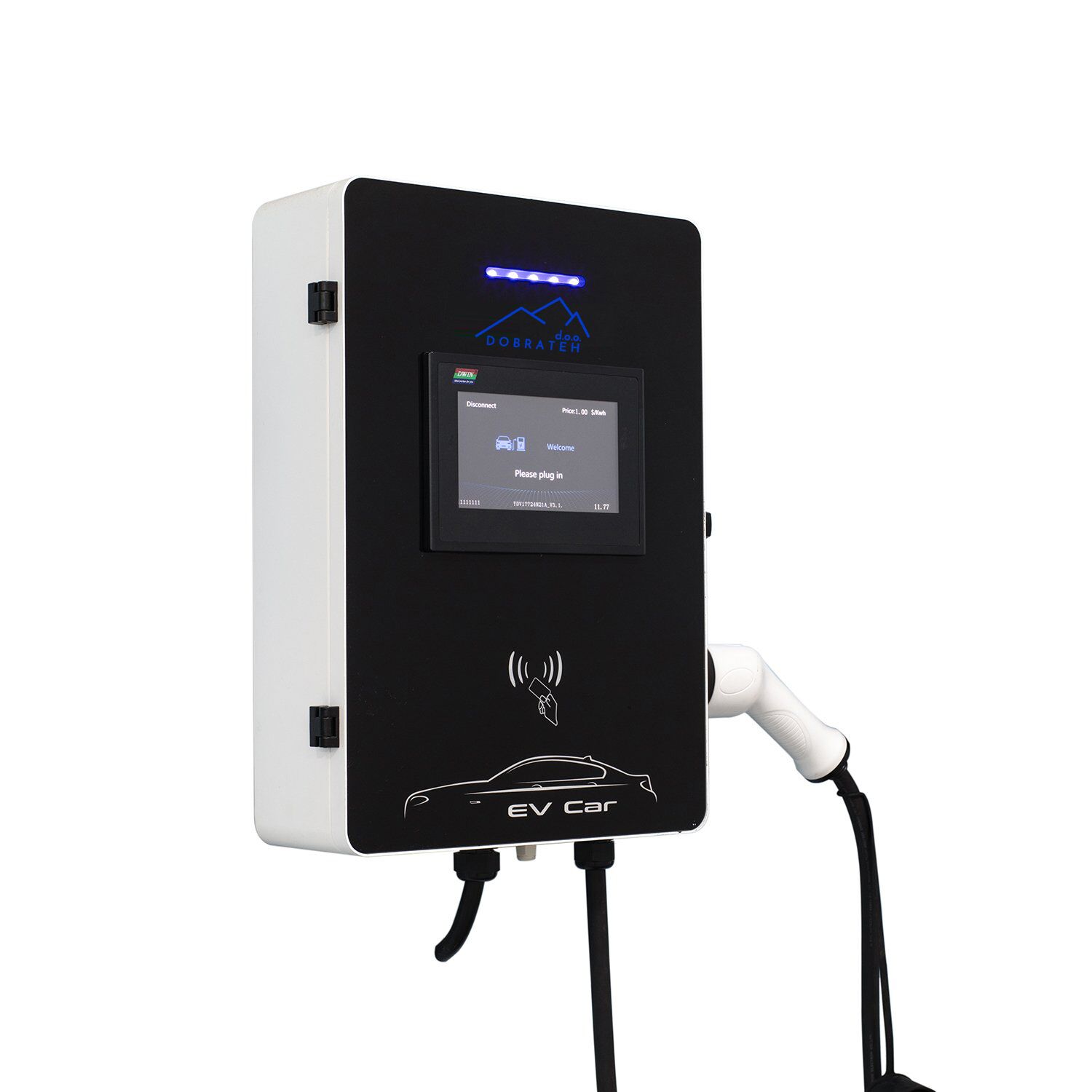

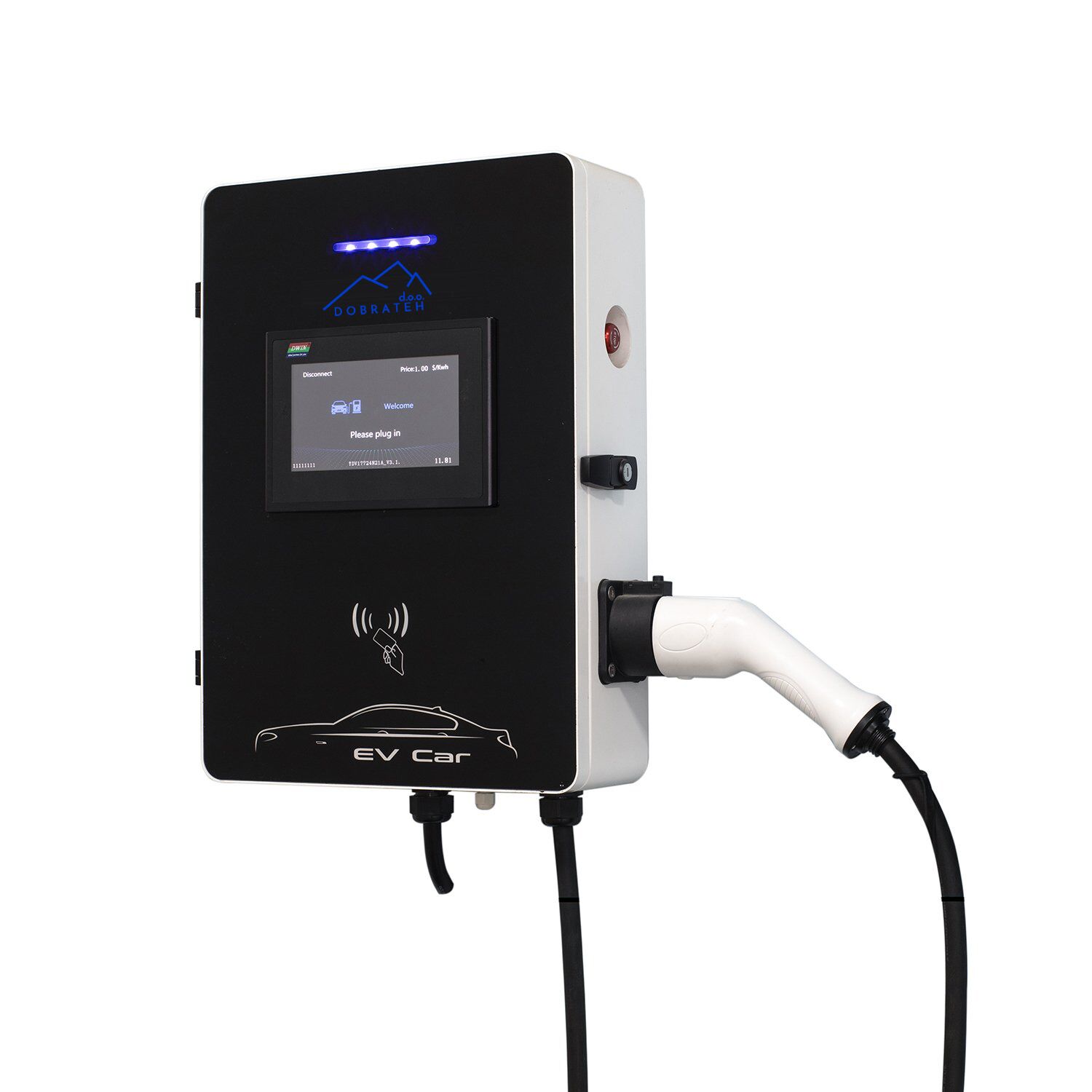

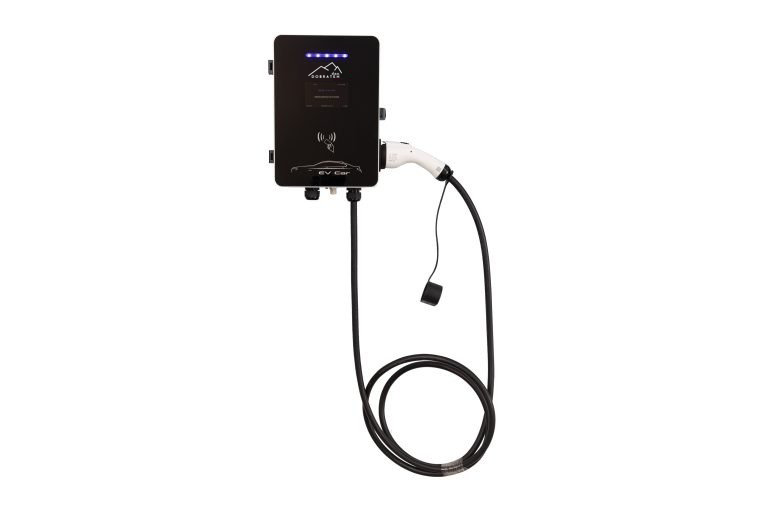

DOBRATEH 11kW / 22kW Wall-mounted AC Charging Station (Metal Type)

No items found.

The AC charging station provides AC power with AC 50/60Hz and rated voltage 220V±20%.

Charging electric vehicles with on-board chargers is mainly suitable for the following places:

  • Large, medium and small electric vehicle charging stations;
  • All kinds of electric vehicle parking spaces public places, such as urban residential quarters, shopping plazas, power business places, etc.;
  • High-speed service areas, stations, docks, and other transportation hub areas;
  • Real estate and engineering Construction acceptance needs.

‍

Product Parameters
Details
Product Name AC Charging Station
Model Home and Commercial Use
AF-AC-011-B-A-O-1/2/3/4/5/6-JS-P AF-AC-022-B-A-O-1/2/3/4/5/6-JS-P
Specification Rated Power 11 kW 22 kW
Charging Device Installation Wall-mounted / Floor-standing
Route Bottom in and bottom out

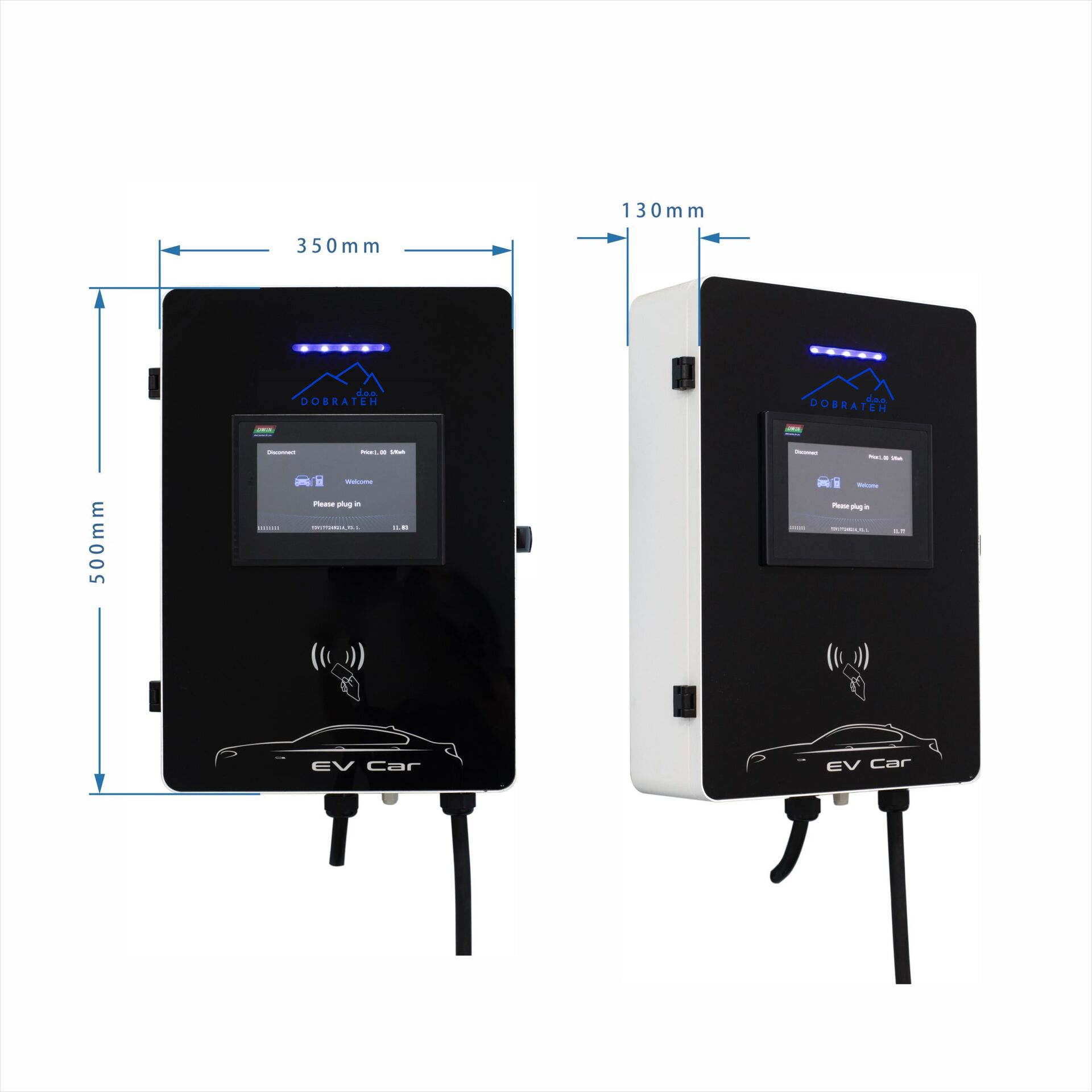

Equipment Size 500 × 350 × 130 mm
Weight 16 kg
Cable Length 5 m
Electrical Indicators Input Voltage AC 380 V ± 15%
Input Frequency 50 / 60 Hz
Metering Accuracy 1.0 Level
Output Current Type: 16 A / 3P Type: 32 A / 3P
Current Limit Protection Value ≥110%
RCD Type A 30 mA + 6 mA DC
DLB Support

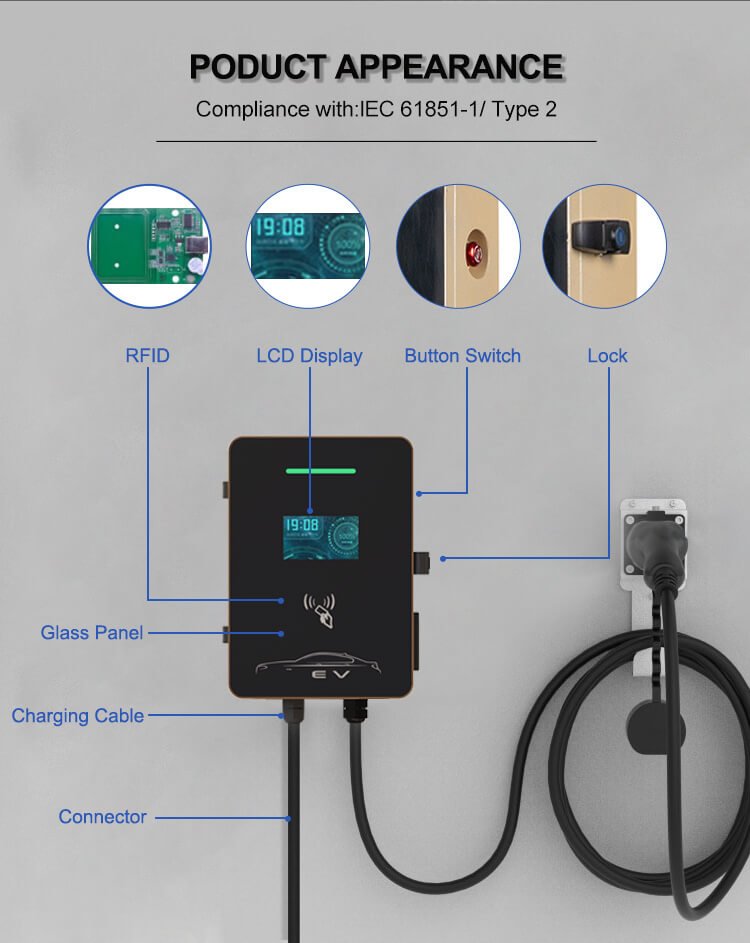

Functional Design HMI 5-inch LCD screen + LED indicator bar
Charging Mode Automatic full charge / Fixed energy / Fixed amount / Fixed time
Charging Method NFC (Swipe to charge), scan QR code, App (optional)
Authentication & Payment Free Charge, RFID, App, NFC, Plug & Charge (ISO 15188), Auto Charge (DIN 70121)
Network Interface Ethernet, 4G, RS485, Wi-Fi (optional)
Protocol EVSE to EV Control Point, ISO 15188, DIN 70121
EVSE to Backend OCPP 1.6J
Safety Design Security Function Charging gun temperature detection, over-voltage, under-voltage, overload, short circuit, grounding, over-temperature, lightning, emergency stop, leakage protection
Executive Standard EN IEC 62196-1:2022, EN IEC 62196-2:2022, EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN IEC 61000-3-3:2013+A1:2019+A2:2021; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18)
Environmental Indicators Operating Temperature -35 ~ +55 °C
Working Humidity 5% ~ 95% non-condensing frost
Working Altitude <2000 m
Protection Class IP54
Cooling Method Natural air cooling
Noise Control ≤40 dB
MTBF 17,520 hours

Check the packing box for the following items before installation (subject to the packing list)

  • Wall mounted type AC charging station(1 set)
  • Installation instructions (1 set)
  • 1 piece of certificate of quality
  • Mounting brackets (2 pieces)
  • Mounting screws (1 pack)
  • Key (2 pieces)

Installation Environment Requirements

  • The Ingress Protection of this series EV AC charging station: IP54;
  • Ambient temperature:-20℃to +50℃;

Installation Method

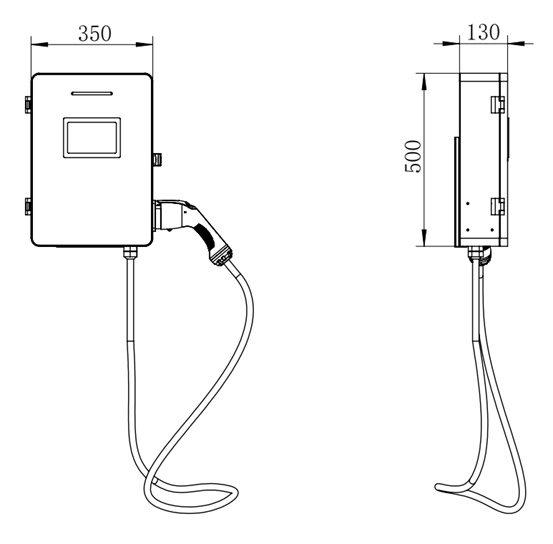

This series of EV AC charging stations can be installed Wall mounted according to the requirements of Installation size, as the Figure：

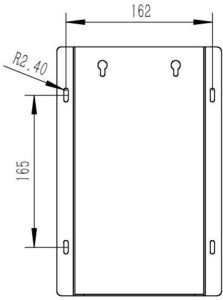

Four set M4 expansion screws for wall-mounted type ( holes with a diameter of 6mm )

Common Faults And Solutions Of EV AC Charger Station

Common Malfunctions Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.” Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while. This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue). Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging. Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed. Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge. Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on. If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded. Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.

Maintenance And Preservation Of EV AC Charging Station

  • Charging stations should be installed outdoors in an enclosed area.
  • When the charging cycle is finished or when the user terminates the charging cycle disconnect

the cable before storing the cable and inserting the plug into the storage socket on the wall of the charger.

Please note: In the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. The charging unit should be adequately secured during transport to avoid strong vibration and turbulence to damage the outer packaging of the equipment.

Note: Non-professional personnel are strictly prohibited from installing the EV AC charger.

‍

‍
