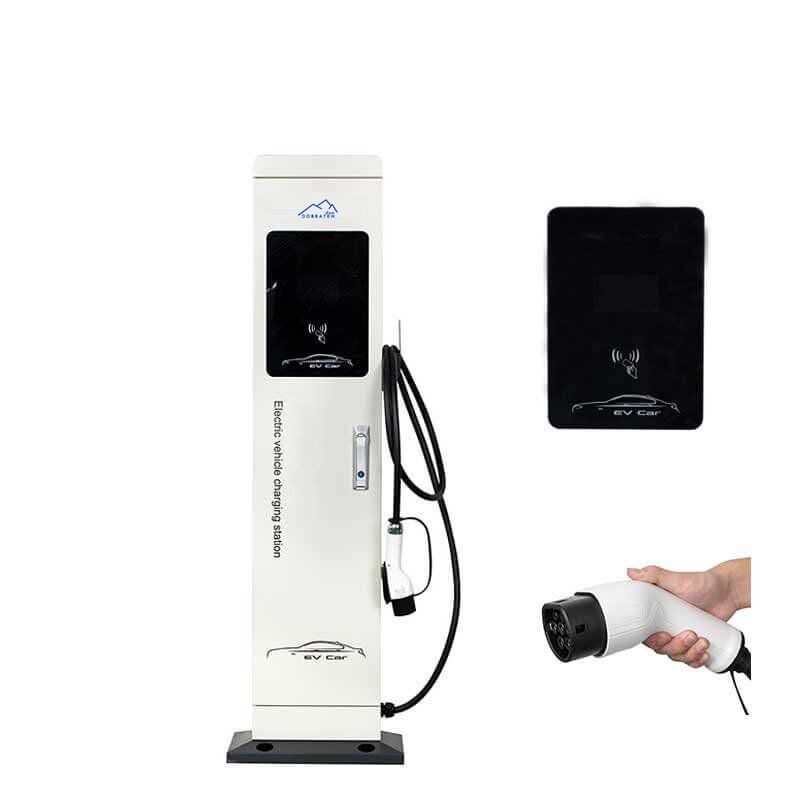

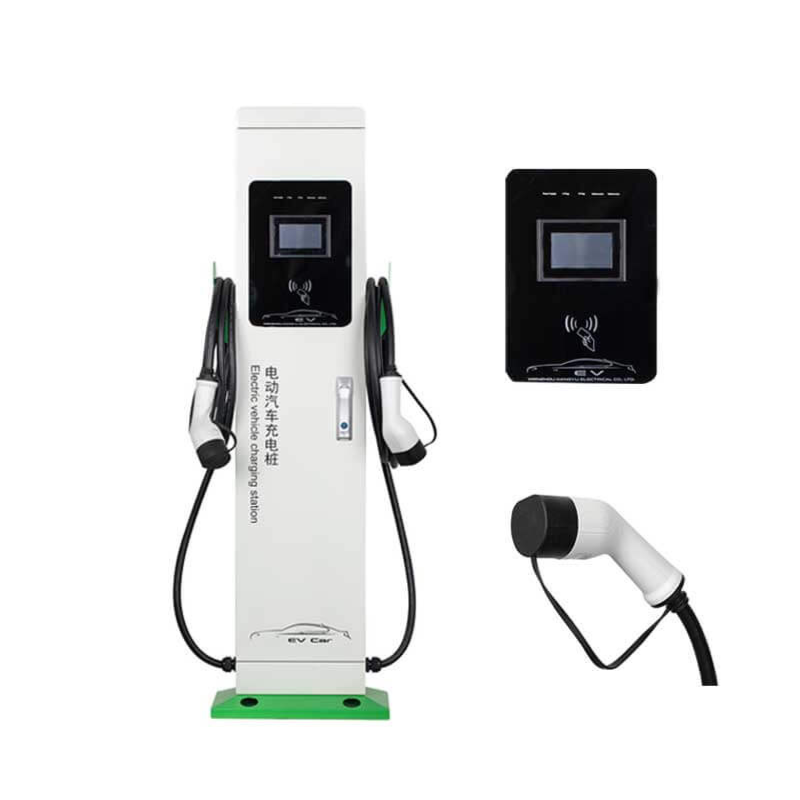

The AC charging station provides AC power with AC 50/60Hz and rated voltage 220V±20%. Charging electric vehicles with on-board chargers is mainly suitable for the following places:
Large, medium and small electric vehicle charging stations;
All kinds of electric vehicle parking spaces Public places, such as urban residential quarters, shopping plazas, power business places, etc.;
High-speed service areas, stations, docks and other transportation hub areas;
Real estate and engineering Construction acceptance needs.
NB/T 33008.2-2018; GB/T34657.1-2017; EN IEC 62196-2:2016; EN IEC 61851-1:2019; EN 61851-23:2014; EN IEC 61851-21-2:2021; EN IEC 61000-6-1:2019; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18); GB/T 18487.1-2015; GB/T 18487.2-2017; NB/T33002-2018
Environmental Indicators
Operating Temperature
-35 ~ +55
Working Humidity
5%–95% non-condensing
Working Altitude
≤2000 m
Protection Class
IP54
Cooling Method
Natural air cooling
Noise Control
≤40 dB
MTBF
17520 hours
Check the packing box for the following items before installation (subject to the packing list)
Floor standing mounted type AC charging station(1 set )
Installation instructions (1 set)
1 piece of certificate of quality
Mounting expansion screws (4 pieces)
Key (2 pieces)
Installation Environment Requirements
The Ingress Protection of this series EV AC charging station: IP54;
Ambient temperature -20℃to +50℃;
Installation Method

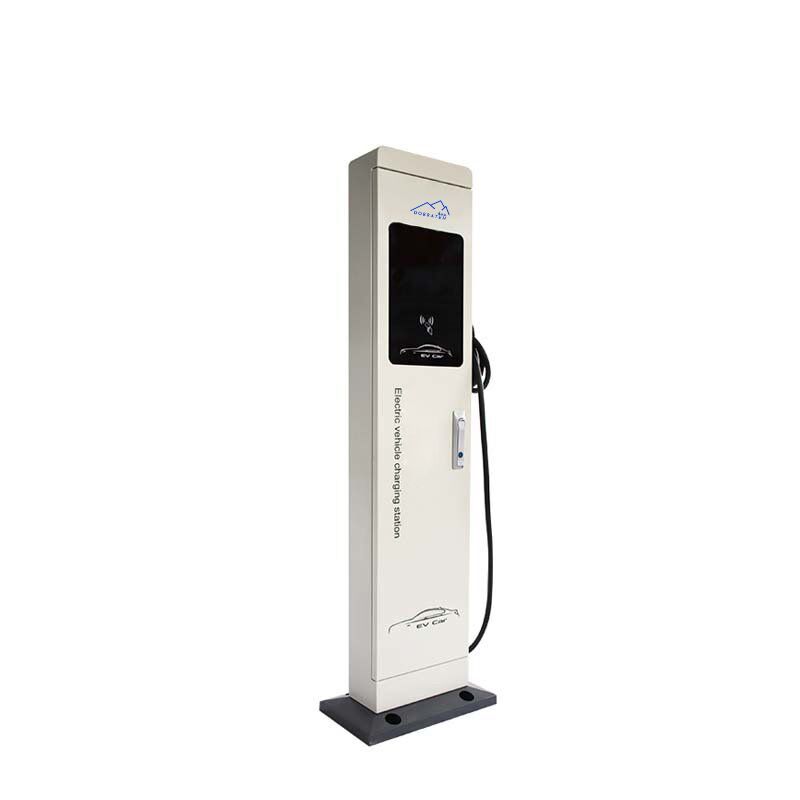

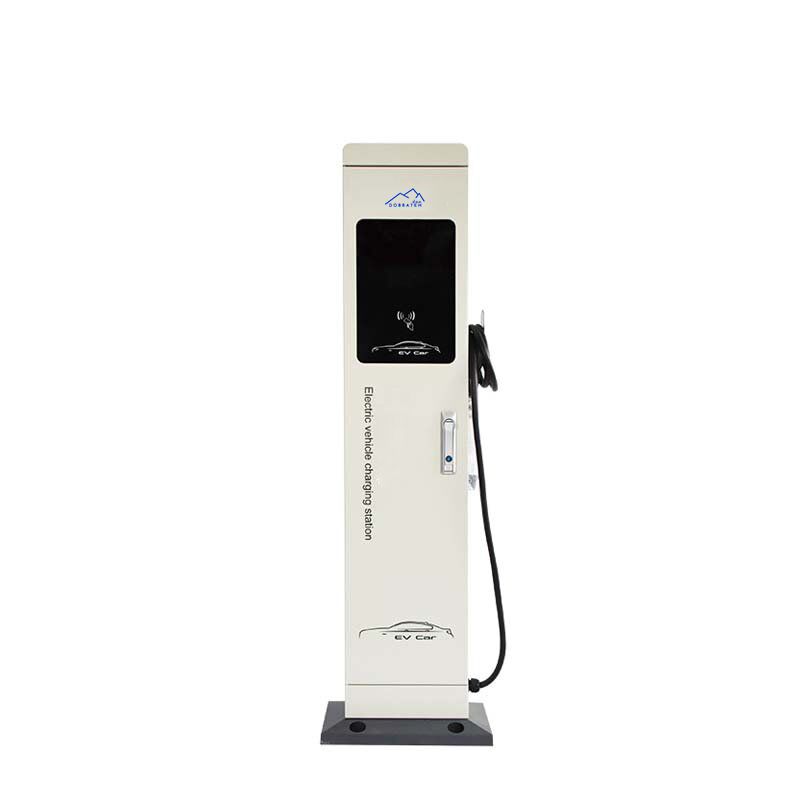

This series of EV AC charging stations can be installed Floor standing mounted according to the requirements Installation size, as the Figure：
Common Faults And Solutions Of EV AC Charger Station
Common Malfunctions
Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.”
Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while.
This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue).
Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging.
Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed.
Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge.
Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on.
If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded.
Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.
Maintenance And Preservation Of EV AC Charging Station
Should charge station to do a good shade and rain prevention measures, outdoor recommended installation of shelter.
Check regularly whether all bolts in the charging stationary fastened, whether the connection line is loose, and the connection is not firm. Check for short circuit.
Pay attention to lightning protection to ensure effective shielding and reliable grounding of charging station
In use, the output voltage and current of the charging stationary controlled within the nominal range as far as possible to ensure that the charging station works in the state of maximum efficiency.
When the body stops using, stop charging output, then wrap the cable and put it back in place.
Note:
In the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. There should be corresponding fastening measures to avoid strong vibration and turbulence to damage the outer packaging of the equipment.
Non-professional personnel are strictly prohibited from installing the EV AC charger.
