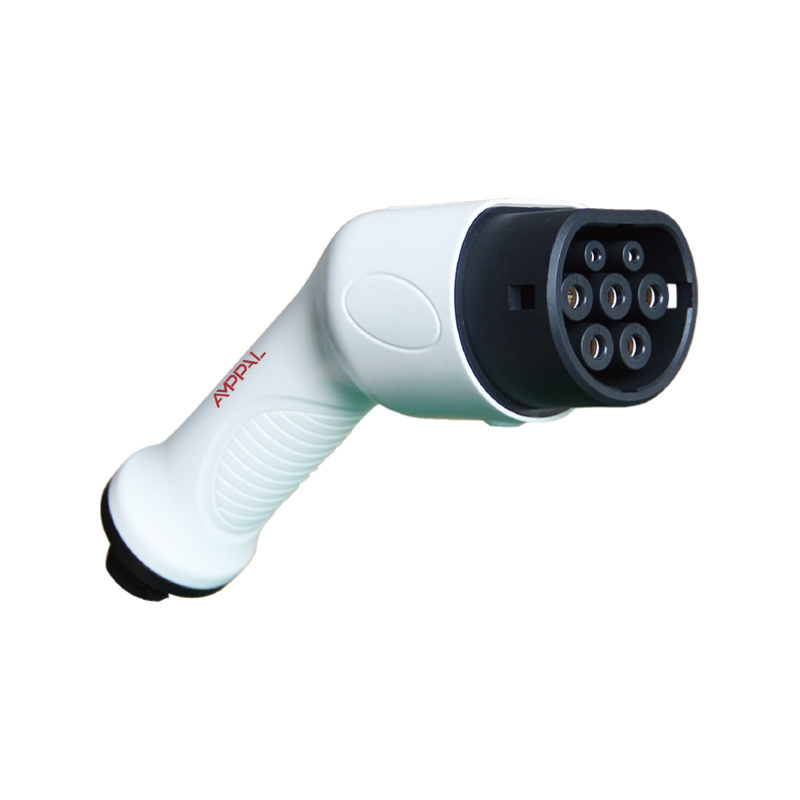

| Product Name |
AC Charge Connector |
| Rated Current |
16 A / 32 A |
| Rated Voltage |
220–380 V |
| Number of Power Pins |
5 (PE, L1, L2, L3, N) |
| Number of Signal Pins |
2 (CC, CP) |
| Number of Signal Contacts |
≥50,000 |
| Signal Contact Retention Force |
≤80 N |
| Plug Cycle |
≥10,000 times |
| Working Temperature |
-35 ~ +55°C |
| Impact Resistance |
Can withstand a 1 m drop and the pressure of a 2-ton vehicle |
| Insulation Resistance |
≥1000 MΩ |
| Protection Level |
IP67 (plugged in, with protective cover) |
| Pin |
Aluminum alloy, silver-plated surface with top insulation |
| Shell Material |
Thermoplastic, flame-retardant grade UL94 V-0 |
| Shell Color |
White |
