Automatic charging full / Fixed power / Fixed Amount / Fixed time
Networking Method
Ethernet, 4G, WIFI
Mode Of Payment
Credit card / Scan code
Charging Method
Swipe Card / Scan code
Operation Mode
Offline no billing, offline billing, online billing
Dynamic Load Balance
YES
Communication Protocol
OCPP 1.6J
Safety Design
Operative Norm
IEC61851-1-2017；IEC62196-2: 2016
Safety Function
Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection
Environmental Indicators
Working Temperature
-20℃~+50℃
Working Humidity
5%~95% non-condensing frost
Working Altitude
≤2000m
Ingress Protection
IP54
Cooling Method
Natural air cooling
Noisy Control
≤40dB
MTBF
30,000hours
Check the packing box for the following items before installation (subject to the packing list)
Floor standing mounted type AC charging station(1 set )
Installation instructions (1 set)
1 piece of certificate of quality
Mounting expansion screws (4 pieces)
Key (2 pieces)
Installation Environment Requirements
The Ingress Protection of this series EV AC charging station: IP54;
Ambient temperature -20℃to +50℃;
Installation Method
Common Faults And Solutions Of EV AC Charger Station
Common Malfunctions
Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.”
Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while.
This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue).
Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging.
Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed.
Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge.
Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on.
If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded.
Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.
Maintenance And Preservation Of EV AC Charging Station
Should charge station to do a good shade and rain prevention measures, outdoor recommended installation of shelter.
Check regularly whether all bolts in the charging stationary fastened, whether the connection line is loose, and the connection is not firm. Check for short circuit.
Pay attention to lightning protection to ensure effective shielding and reliable grounding of charging station
In use, the output voltage and current of the charging stationary controlled within the nominal range as far as possible to ensure that the charging station works in the state of maximum efficiency.
When the body stops using, stop charging output, then wrap the cable and put it back in place.
Note: in the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. There should be corresponding fastening measures to avoid strong vibration and turbulence to damage the outer packaging of the equipment.
Functional Characteristics

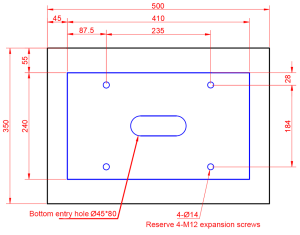

One installation methods: Floor standing mounted;
Adopt AC 380VAC input;
The main control board uses a single-chip microcomputer with an embedded operating system, the charging mode is divided into automatic charging filling and optional charging time, charging amount, and charging electric quantity; RS-485 networking communication interface can be reserved, and optional GPRS, 4G are provided Other networking methods;
Using a 4.3-inch display screen, which can set the charging mode (the display screen is only available in the operating version);
Using a single-phase electronic electric energy meter for electricity metering and communicating with the main control board through the RS-485 interface;
The shape adopts sheet metal and part of ABS plastic structure.
Working Environment
When users have special requirements, please negotiate with our company.
The ambient air temperature during operation is -20℃~﹢50℃,24h daily average temperature≤35℃( Too high or too low temperature will affect the life of the product );
The average relative humidity≤90%(25℃ ), no condensation on the surface;
Pressure: 80 kpa~110 kpa;
Installation vertical inclination≤5%;
Experimental level of Vibration and shock in use≤I Level, Inductive strength of an external magnetic field in either direction≤55mT;
There should be no explosive medium in the place of use, and the surrounding medium does not contain harmful gases and conductive media that corrode metals and damage insulation, and are not allowed to be filled with water vapor and serious mold bacteria;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to add sunshade facilities to the charging station to prolong the service life of the equipment;
