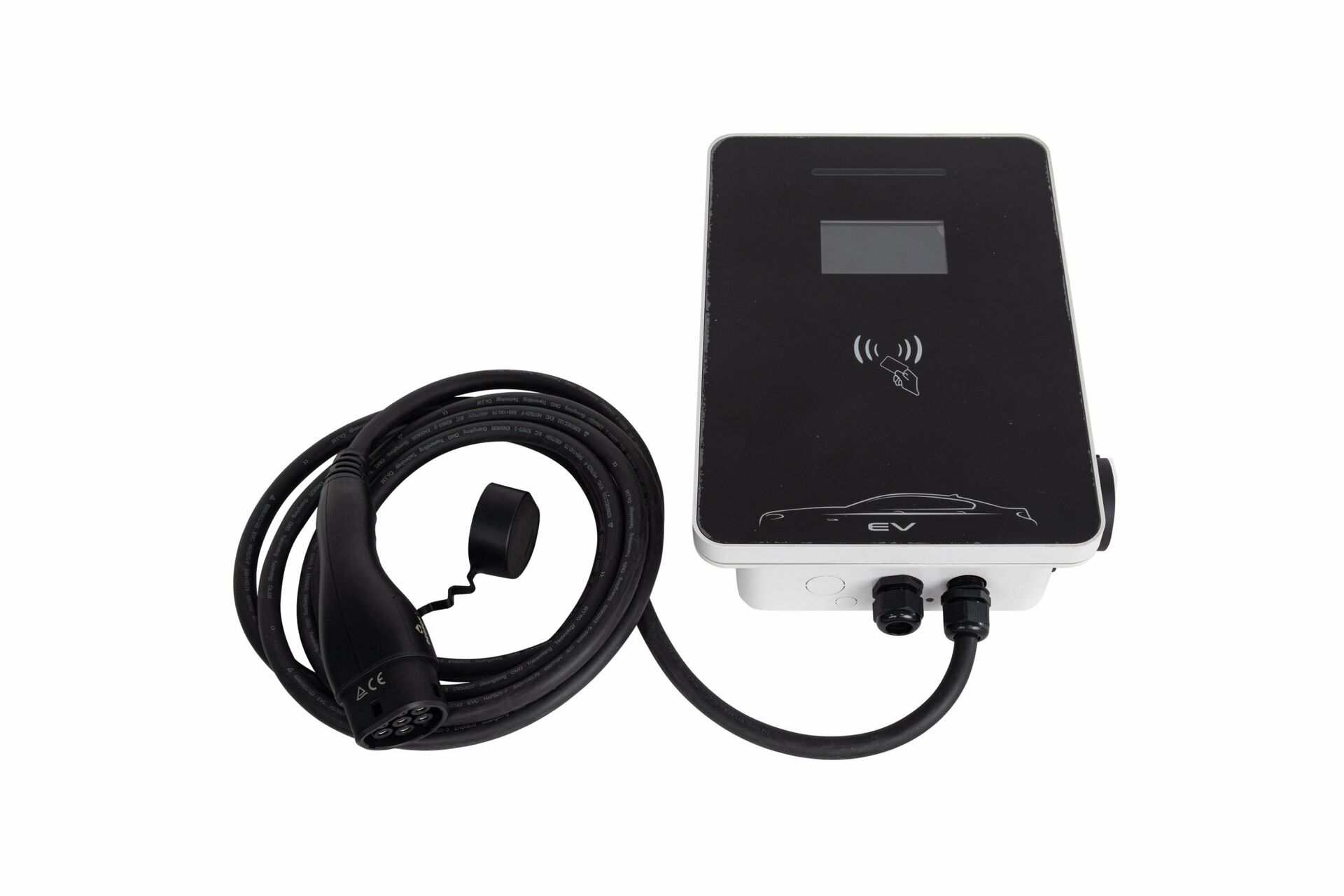

AMPPAL 7kW / 11kW / 22kW Wall-Mounted AC Charging Station (Plastic Type)

Product Name		AC Charging Station (Plastic Type)
Model		AF-AC-007-B-A-O-1/2/3/4/5-RZ-P / AF-AC-011-B-A-O-1/2/3/4/5-RZ-P / AF-AC-022-B-A-O-1/2/3/4/5-RZ-P
Specification	Rated Power	7kW / 11kW / 22kW
Charging Device	Installation Method	Wall mounted / Floor-Standed
	Route	Bottom in and bottom out
	Equipment Size	400 × 280 × 120 mm
	Gross Weight	11 kg
	Cable Length	5 m
Electrical Indicators	Input Voltage	AC 220V ±20%
	Input Frequency	50 / 60 Hz
	Output Voltage	AC 220V ±20%

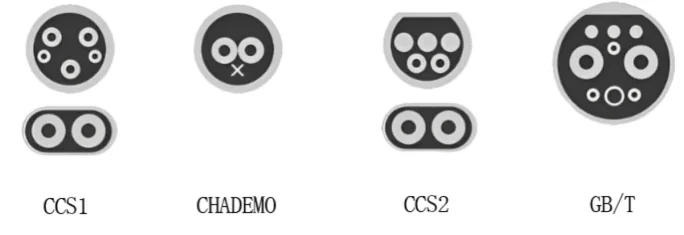

	Output Current	Type2: 32 A / 1P \| Type2: 16 A / 3P \| Type2: 32 A / 3P
	Current Limit Protection Value	≥110%
	Metering Accuracy	1.0 Level
	RCD	Type A 30mA + 6mA DC
	DLB	Support
Functional Design	HMI	5-inch LCD screen + LED indicator bar
	Authentication & Payment Methods	Free Charge, RFID, Plug&Charge (ISO 15118), Auto Charge (DIN 70121), APP, NFC
	Charging Method	NFC (Swipe to charge), scan QR code, APP (optional)

‍

Check the packing box for the following items before installation (subject to the packing list)

Wall-mounted type AC charging station(1 set )
Installation instructions (1 set)
1 piece of certificate of quality
Mounting brackets (2 pieces)
Mounting screws (1 pack)
Key (2 pieces)

Installation Environment Requirements

TheIngress Protection of this series EV AC charging station: IP54;
Ambient temperature: -20℃to +50℃;

Installation Method

This series of EV AC charging stations can be installed Wall mounted according to the requirements of Installation size, as the Figure：

Common Faults And Solutions Of EV AC Charger Station

Common Malfunctions	Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.”	Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while.	This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue).	Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging.	Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed.	Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge.	Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on.	If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded.	Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.

Maintenance And Preservation Of EV AC Charging Station

Charging stations should be installed outdoors in enclosed areas.
When the charging cycle is finished or when the user terminates the charging cycle disconnect

the cable before storing the cable and inserting the plug into the storage socket on the wall of the charger.

Please note: In the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. The charging unit should be adequately secured during transport to avoid strong vibration and turbulence to damage the outer packaging of the equipment.

Note: Non-professional personnel are strictly prohibited from installing the EV AC charger.

Working Environment

The ambient air temperature during operation is -20℃~﹢50℃,24h daily average temperature≤35℃( Too high or too low temperature will affect the life of the product );
The average relative humidity≤90%(25℃ ), no condensation on the surface;
Pressure: 80 KPa~110 KPa;
Installation vertical inclination≤5%;
Experimental level of Vibration and shock in use≤I Level, Inductive strength of an external magnetic field in either direction≤55mT;
There should be no explosive medium in the place of use, and the surrounding medium does not contain harmful gases and conductive media that corrode metals and damage insulation, and are not allowed to be filled with water vapor and serious mold bacteria;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to add sunshade facilities to the charging station to prolong the service life of the equipment;

When users have special requirements, please negotiate with our company.

‍

‍
