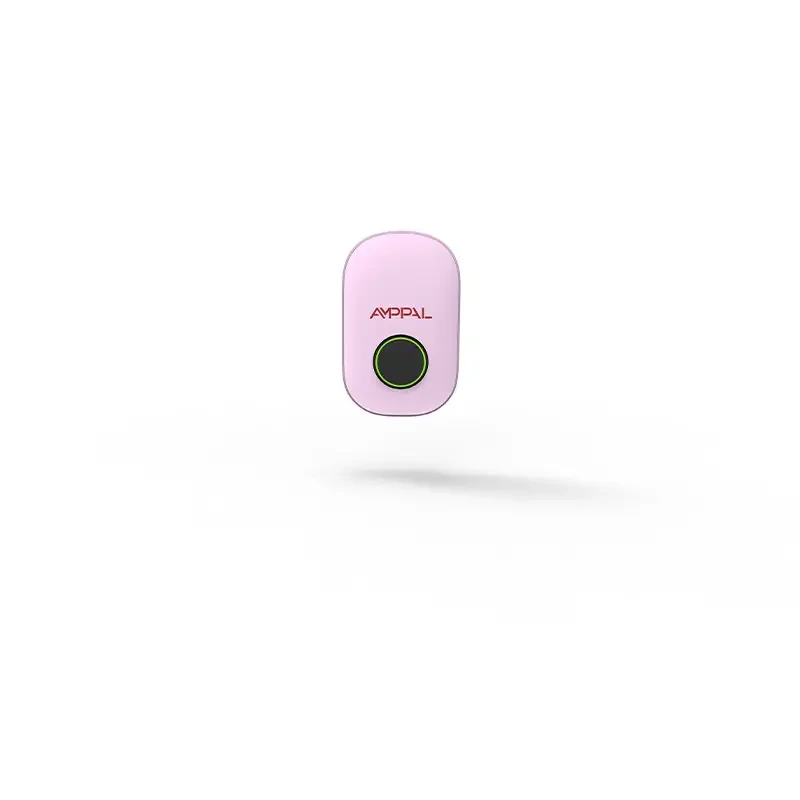

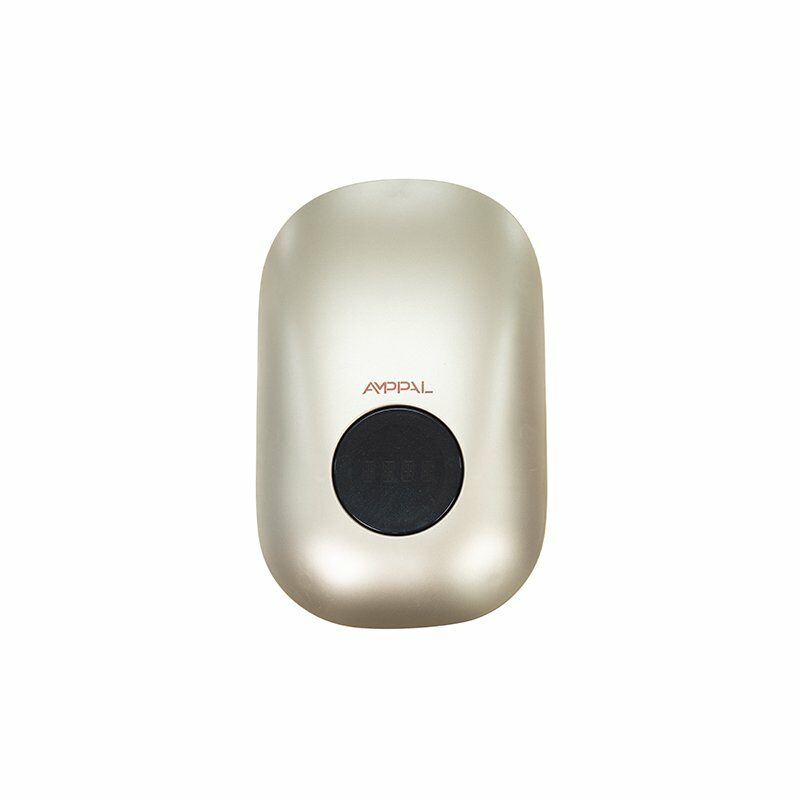

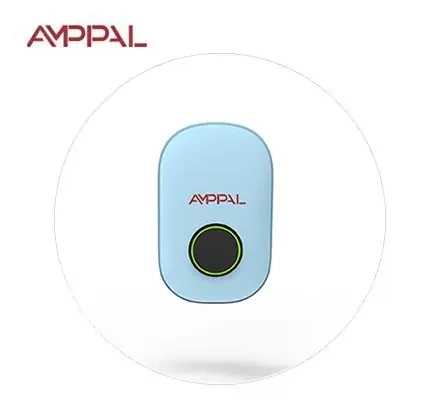

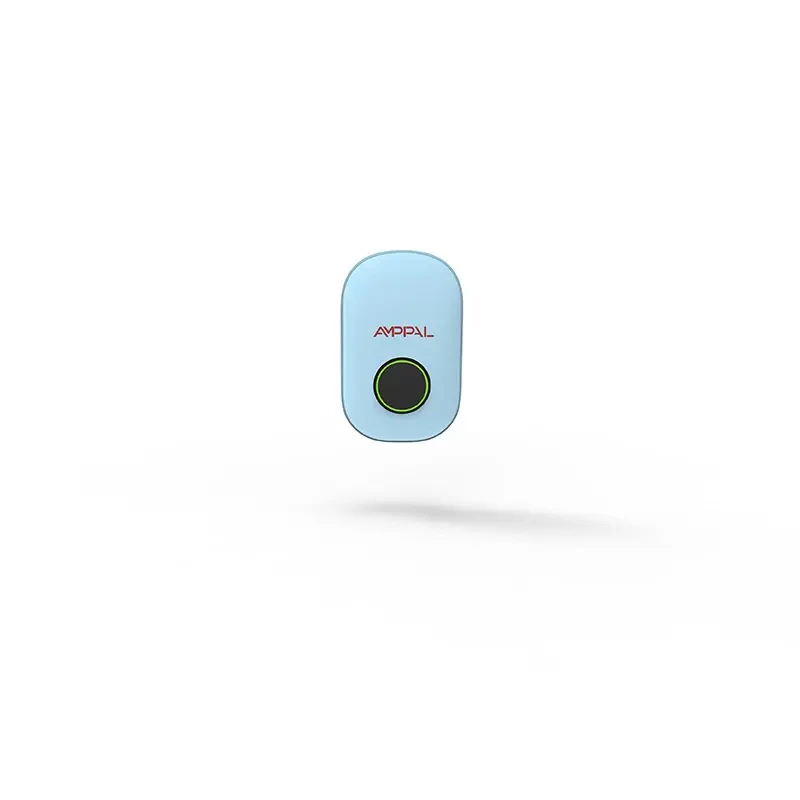

AMPPAL 3.5kW / 7kW / 11kW Wall-mounted AC Charging Station (X-Vision)

Product Name		AC Charging Station (Plastic Type)
Model		Home Use
		AF-AC-3.5-B-A-O-1/2/5-SF	AF-AC-007-B-A-O-1/2/5-SF	AF-AC-011-B-A-O-1/2/5-SF
Specification	Rated Power	3.5kW	7kW	11kW
Charging Device	Installation Method	Wall mounted
	Feeding Method	Bottom in and bottom out
	Equipment Dimension	30419195 (mm)
	Equipment Weight	3.5 kg
	Cable Length	5m
Electrical Indicators	Input Voltage	AC 220V±20%
	Input Frequency	50/60 Hz
	Output Voltage	AC 220V±20%
	Output Current	Type2: 16 A/1P	Type2: 32 A/1P	Type2: 16 A/3P
	Current Limit Protection Value	≥110%
	Metering Accuracy	2.0 Level
Functional Design	HMI	LED indicator strip
	Charging Mode	Automatic full charge
	Charging Method	Plug and charge, Swipe the card, APP
	Mode Of Payment	/
	Network Way	Bluetooth / WIFI / APP
Safety Design	Operative Norm	EN IEC 62196-1:2022, EN IEC 62196-2:2022, EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1: 2019+A2:2021; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18)
	Safety Function	Over-voltage protection, under-voltage protection, overload protection, grounding protection, over-current protection, emergency stop protection, leakage protection and over temperature protection.
Environmental Indicators	Working Temperature	-35~+55
	Working Humidity	5%~95% non-condensing frost
	Working Altitude	<2000m
	Ingress Protection	IP54 (IEC 60529)
	Cooling Method	Natural air cooling
	Noisy Control	≤40dB
	MTBF	17520 hours

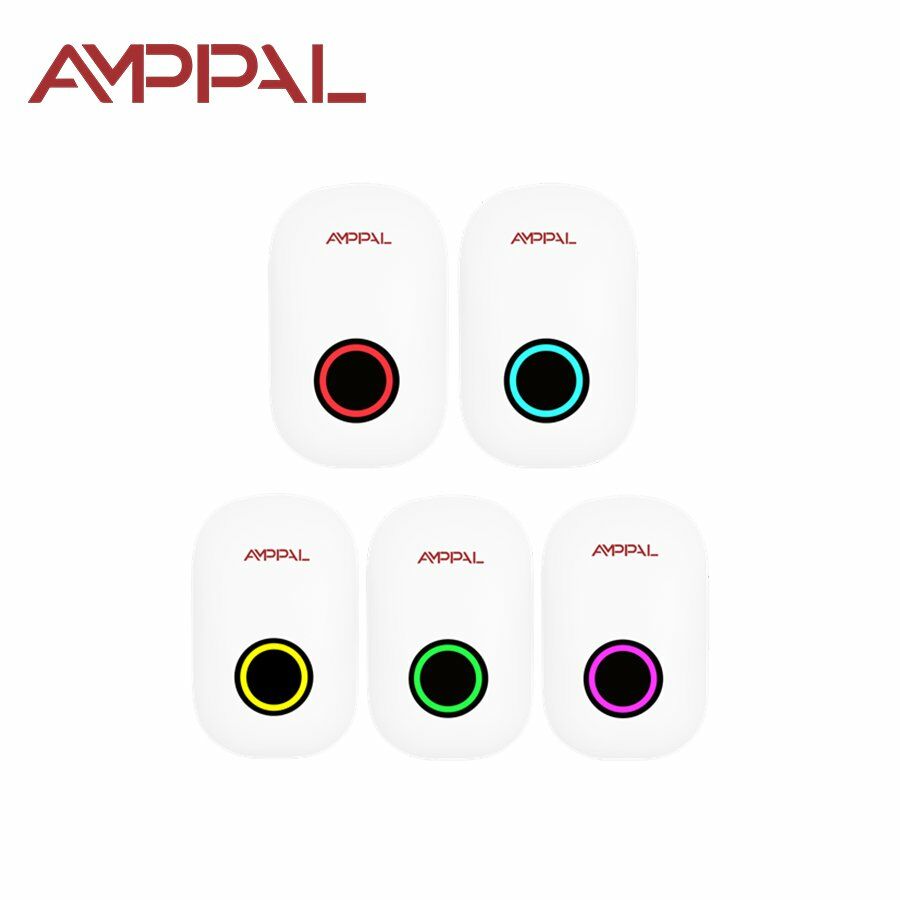

Meaning of LED indicator

No.	State	Led Color
1	Charging	Blue Breathing Lighting
2	Prepare Charging	Constant Blue Lighting
3	Pause	Flashing Blue
4	Standby	Green Breathing Lighting
5	POST (Power on self-test)	Constant White Lighting

‍

No.	State	Led Color	Instructions	Recover The Fault
1	CP Exception	Red	Flash once in 5s	Pull out the plug
2	PE Exception	Red	Flash twice in 5s	Turn off the power
3	Normal Fault	Red	Constant Lighting	Pull out the plug

Check the packing box for the following items before installation (subject to the packing list)

Wall mounted type AC charging station (1 set )
Installation instructions (1 set)
1 piece of certificate of quality
Mounting expansion screws (1 pack)

Installation Environment Requirements

The Ingress Protection of this series EV AC charging station: IP54;
Ambient temperature: -20℃~ +50℃;

Common Faults And Solutions Of EV AC Charger Station

Common Malfunctions	Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.”	Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while.	This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue).	Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging.	Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed.	Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge.	Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on.	If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded.	Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.

Maintenance And Preservation Of EV AC Charging Station

Charging stations should be installed outdoors in enclosed areas.
When the charging cycle is finished or when the user terminates the charging cycle disconnect

the cable before storing the cable and inserting the plug into the storage socket on the wall of the charger.

Please note: In the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. The charging unit should be adequately secured during transport to avoid strong vibration and turbulence to damage the outer packaging of the equipment.

Note: Non-professional personnel are strictly prohibited from installing the EV AC charger.

‍

Functional Characteristics

Installation method: Wall-mounted
Power input: AC 220 V
Main control board: Single-chip microcontroller with an embedded operating system — plug-and-play charging
LED indicators: Multi-color LEDs with distinct flash frequencies to indicate the charger’s current status
Connectivity: Built-in Wi-Fi module for wireless interaction with mobile phones, laptops and other devices
Remote control & monitoring: Web and mobile apps to set charging current, remotely stop charging, and monitor charging data in real time
Enclosure: ABS plastic housing

‍

Working Environment

The ambient air temperature during operation is -20℃~﹢50℃,24h daily average temperature≤35℃( Too high or too low temperature will affect the life of the product );
The average relative humidity≤90%(25℃ ), no condensation on the surface;
Pressure: 80 kpa~110 kpa;
Installation vertical inclination≤5%;
Experimental level of Vibration and shock in use≤I Level, Inductive strength of an external magnetic field in either direction≤55mT;
There should be no explosive medium in the place of use, and the surrounding medium does notcontain harmful gases and conductive media that corrode metals and damage insulation, and are not allowed to be filled with water vapor and serious mold bacteria;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to addsunshade facilities to the charging stationto prolong the service life of the equipment;

When users have special requirements, please negotiate with our company.

‍

‍
