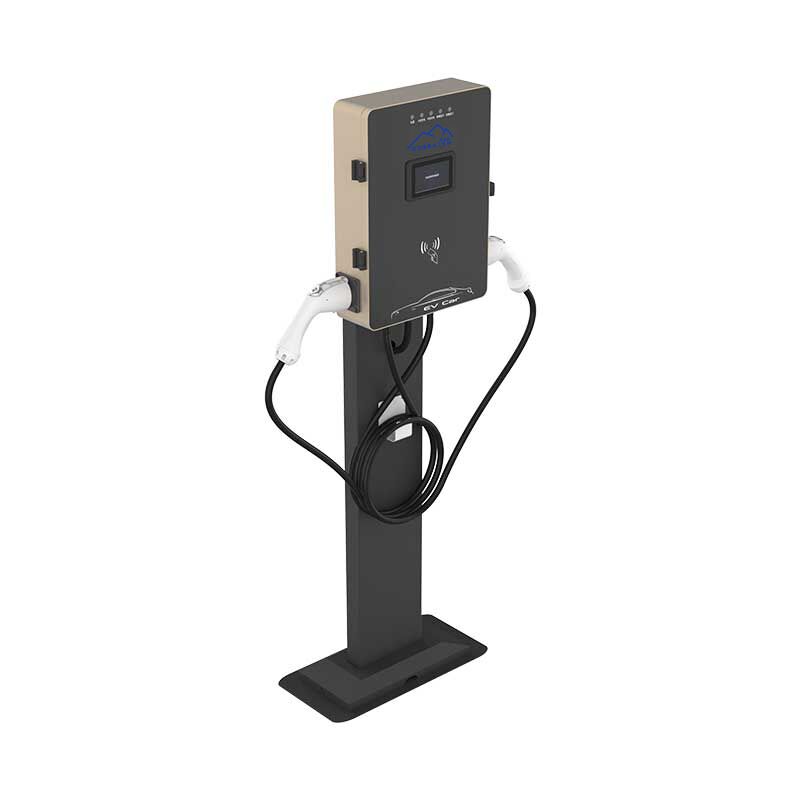

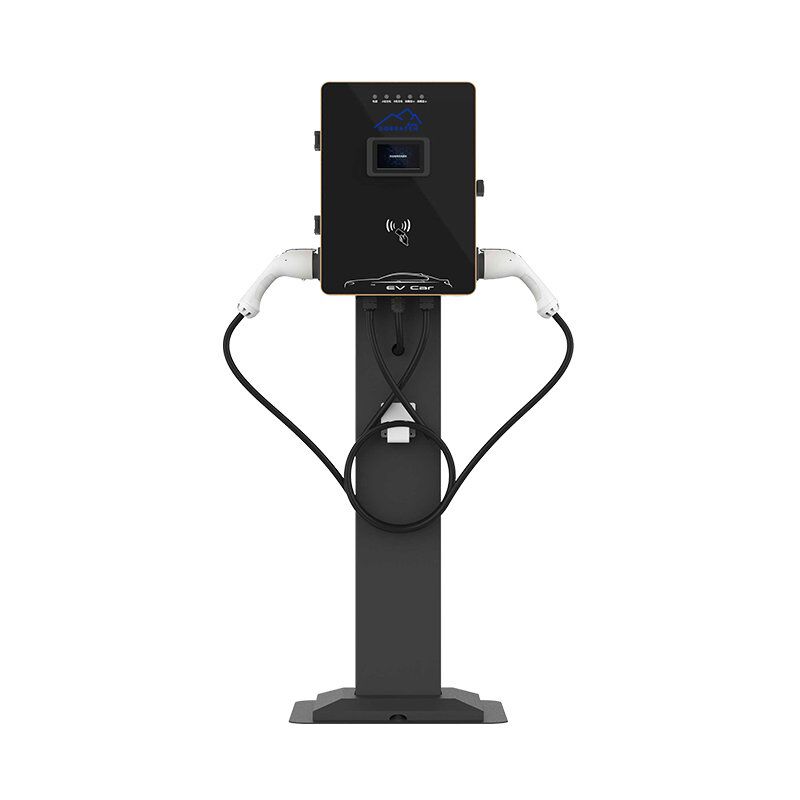

Charging electric vehicles with on-board chargers is mainly suitable for the following places:
Housing material: coated steel or stainless steel (EU conditions)Rated working current: 16A / 32AWorking voltage: AC 380V ±20%
Model No.
AF-AC-22-B-A-O-1/2/3/4/5/6-JS-P
AF-AC-44-B-A-O-1/2/3/4/5/6-JS-P
Rated Power
22 kW
44 kW
Installation Method
Wall-mounted / Floor-standing
Feeding Method
Bottom in, bottom out
Equipment Dimensions
550 × 430 × 130 mm (steel enclosure)
550 × 430 × 160 mm (steel enclosure)
Equipment Weight
16 kg
Input Voltage
AC 380 V ±20%; L1 + L2 + L3 + N + PE
Input Frequency
50 Hz ±10%
Output Voltage
AC 380 V ±20%
Rated Input / Output Current
16 A + 16 A
32 A + 32 A
Current Limit Protection
≥ 110%
Metering Accuracy
Class 1.0
HMI
4.3-inch touch screen, LED indicator strip
Operation Mode
Offline (no billing), offline billing, online billing
Charging Mode
Automatic full charge / Fixed power / Fixed amount / Fixed time
Dynamic Load Balance
Yes
Communication Protocol
OCPP 1.6J
Charging Method
Card swipe / QR code / App / EVCCID / MAC vehicle (optional)
Mode of Payment
Credit card / QR code
Network Connectivity
Ethernet, 4G
Safety Functions
Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, reverse polarity protection, lightning protection, emergency stop protection, leakage protection
Working Temperature
-30 °C to +50 °C
Working Humidity
5%–95% non-condensing
Working Altitude
≤ 2000 m
Ingress Protection
IP54
Cooling Method
Natural air cooling
Noise Level
≤ 40 dB
MTBF
30,000 hours
