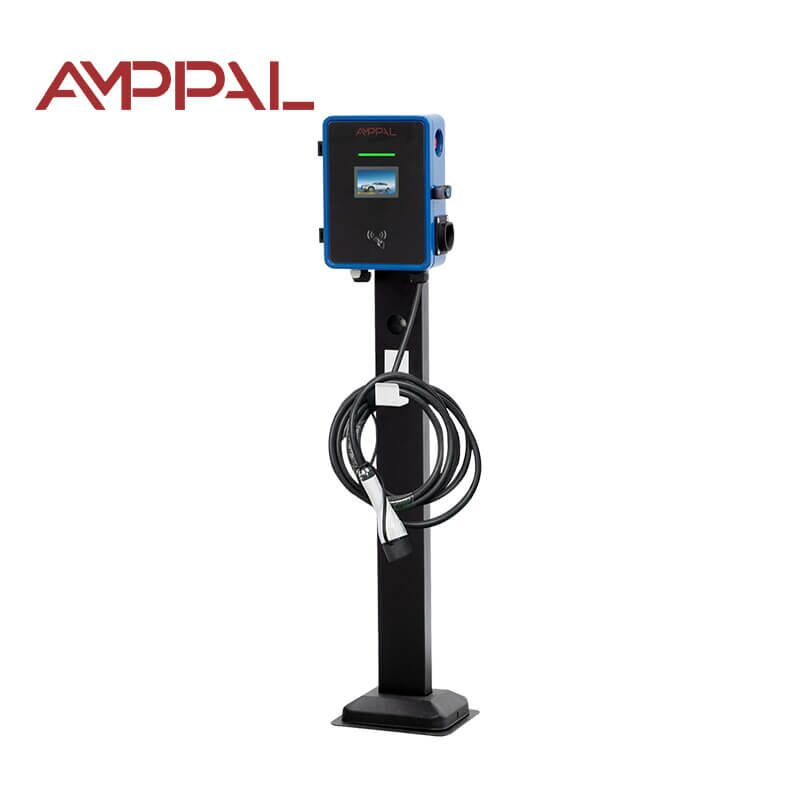

DOBRATEH 7kW / 11kW / 22kW Floor-standed AC Charging Station (Plastic Type)

No items found.

The AC charging station provides AC power with AC 50/60Hz and rated voltage 220V±20%.

Charging electric vehicles with on-board chargers is mainly suitable for the following places:

  • Large, medium, and small electric vehicle charging stations;
  • All kinds of electric vehicle parking spaces Public places, such as urban residential quarters, shopping plazas, power business places, etc.;
  • High-speed service areas, stations, docks, and other transportation hub areas;
  • Real estate and engineering Construction acceptance needs.

‍

Product Parameters
Details
Product Name AC Charging Station
Model AF-AC-007-B-A-O-1/2/3/4/5-RZ-P AF-AC-011-B-A-O-1/2/3/4/5-RZ-P AF-AC-022-B-A-O-1/2/3/4/5-RZ-P
Specifications Rated Power 7kW 11kW 22kW
Charging Device Installation Method Wall mounted, Floor-Standed
Route Bottom in and bottom out
Equipment Size 400×280×120 mm
Gross Weight 11 kg
Cable Length 5 m
Electrical Indicators Input Voltage AC220V±20%
Input Frequency 50/60 Hz
Output Voltage AC220V±20%
Output Current Type2: 32 A/1P Type2: 16 A/3P Type2: 32 A/3P
Current Limit Protection Value ≥110%
Metering Accuracy 1.0 Level
RCD Type A 30mA + 6mA DC
DLB Support

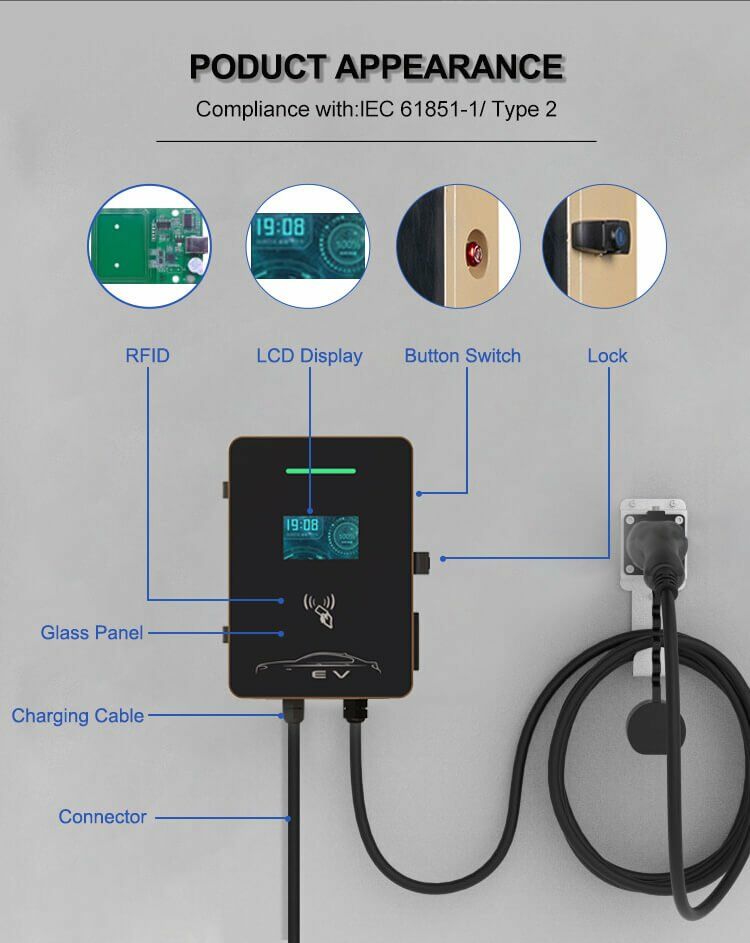

Functional Design HMI 5-inch LCD screen + LED indicator bar
Authentication and Payment Methods Free Charge, RFID,
Plug&Charge (ISO 15188) and Auto Charge (DIN 70121), APP, NFC 		Free Charge, RFID,
Plug&Charge (ISO 15188) and Auto Charge (DIN 70121), APP, NFC 		Free Charge, RFID,
Plug&Charge (ISO 15188) and Auto Charge (DIN 70121), APP, NFC
Charging Method NFC (Swipe to charge), scan QR code to charge, App (optional) NFC (Swipe to charge), scan QR code to charge, App (optional) NFC (Swipe to charge), scan QR code to charge, App (optional)

Check the packing box for the following items before installation (subject to the packing list)

  • Floor stand type AC charging station (1 set )
  • Installation instructions (1 set)
  • 1 piece of certificate of quality
  • Mounting brackets (2 pieces)
  • Mounting screws (1 pack)
  • Key (2 pieces)

Installation Environment Requirements

  • TheIngress Protection of this series EV AC charging station: IP54;
  • Ambient temperature：-20℃to +50℃;

Installation Method

This series of EV AC charging stations can be installed Floor standing mounted according to the requirements Installation size, as the Figure：

Floor standing mounted type with four set M12 expansion screws (holes with a diameter of 16)

Common Malfunctions Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.” Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while. This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue). Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging. Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed. Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge. Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on. If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded. Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.

Maintenance And Preservation Of EV AC Charging Station

  • Charging stations should be installed outdoors in enclosed areas.
  • When the charging cycle is finished or when the user terminates the charging cycle disconnect

the cable before storing the cable and inserting the plug into the storage socket on the wall of the charger.

Please note: In the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. The charging unit should be adequately secured during transport to avoid strong vibration and turbulence to damage the outer packaging of the equipment.

Note: Non-professional personnel are strictly prohibited from installing the EV AC charger.

‍

Working Environment

  • The ambient air temperature during operation is -20℃~﹢50℃,24h daily average temperature≤35℃( Too high or too low temperature will affect the life of the product );
  • The average relative humidity≤90%(25℃ ), no condensation on the surface;
  • Pressure: 80 kpa~110 kpa;
  • Installation vertical inclination≤5%;
  • Experimental level of Vibration and shock in use≤I Level, Inductive strength of an external magnetic field in either direction≤55mT;
  • There should be no explosive medium in the place of use, and the surrounding medium does not contain harmful gases and conductive media that corrode metals and damage insulation, and are not allowed to be filled with water vapor and serious mold bacteria;
  • The place of use should avoid direct sunlight. When installing outdoors, it is recommended to add sunshade facilities to the charging Station to prolong the service life of the equipment;

When users have special requirements, please negotiate with our company.

‍
