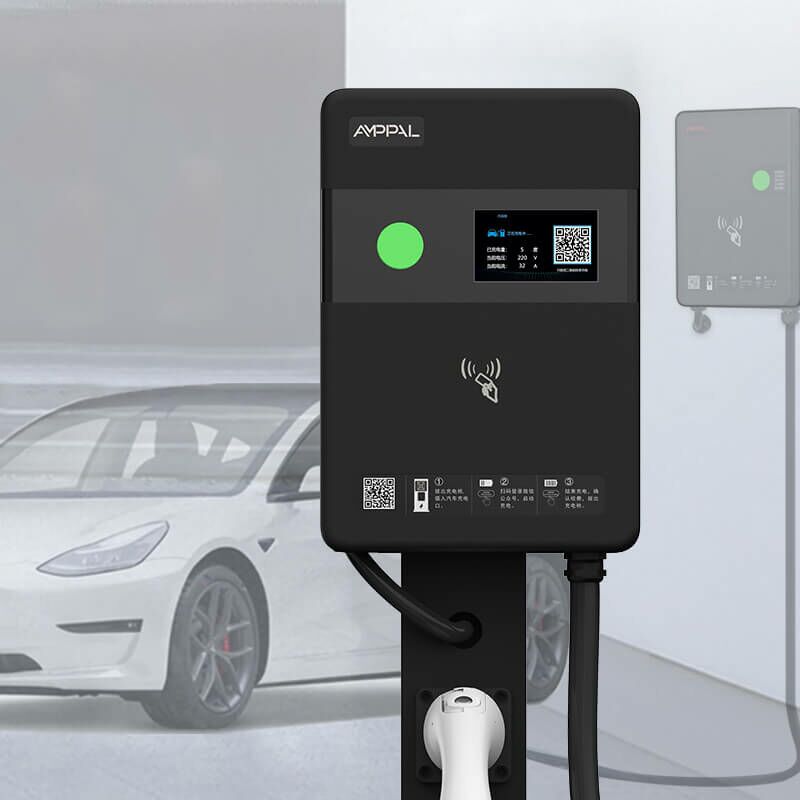

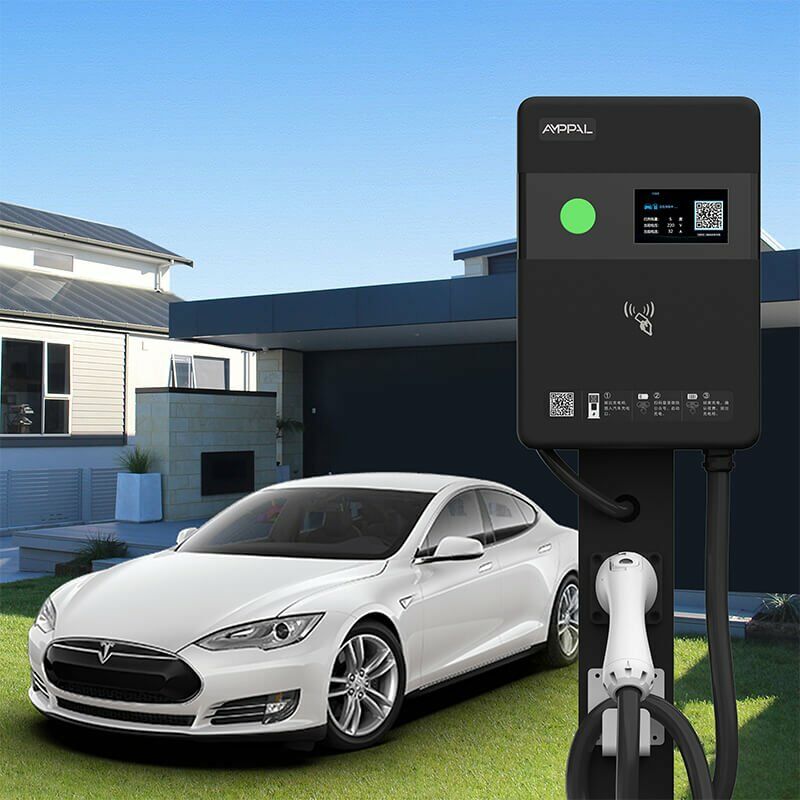

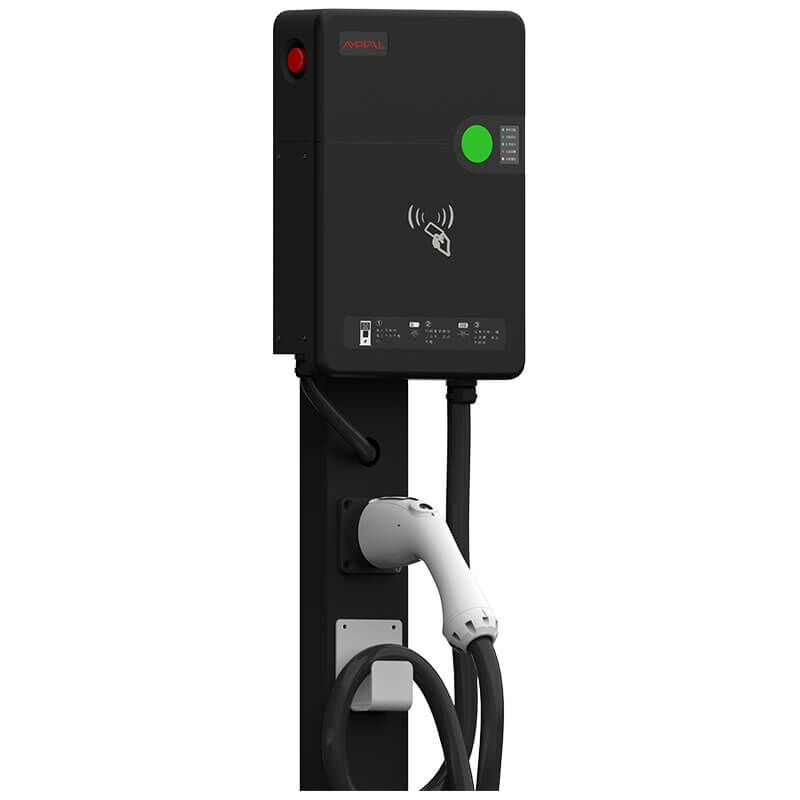

7kW Wall-Mounted / Floor-Standed AC Charging Station OCPP

No items found.

7kW Wall-Mounted / Floor-Standed ACCharging Station OCPP

Charging electric vehicles with on-board chargers is mainly suitable for the following places:

  • Large, medium, and small electric vehicle charging stations
  • All kinds of electric vehicle parking spaces in public places, such as urban residential quarters, shopping plazas, power business premises, etc.
  • High-speed service areas, stations, docks, and other transportation hub areas
  • Real estate and engineering construction acceptance needs

Housing material: thermoplastic, flame retardant grade UL94 V-0
Rated working current: 32A
Working voltage: 220V ±20%

‍

‍

‍

Product Parameters
Video
Details
Product Name AC Charging Station (Plastic Type)
Model AF-AC-07-B-A-O-2/6-SD
Specifications Rated Power 7kW

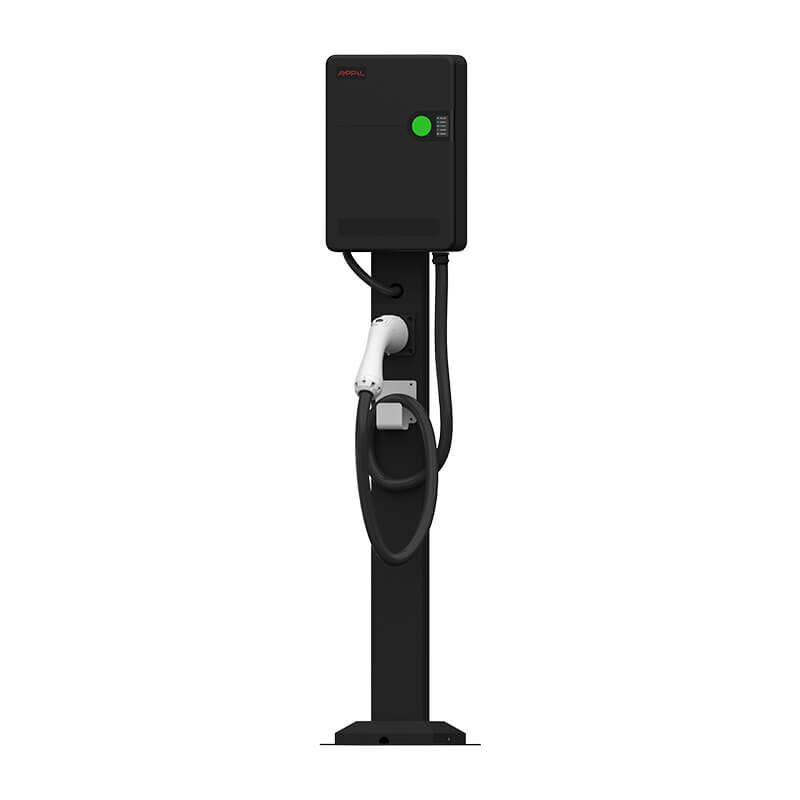

Charging Device Installation Method Wall mounted, Floor-Standed
Route Bottom in and bottom out
Equipment Size 370×255×85 mm
Gross Weight 16 kg
Cable Length 5 m
Electrical Indicators Input Voltage AC220V±20%
Input Frequency 50/60Hz
Output Voltage AC220V±20%
Output Current Type2: 32 A/1P
Current Limit Protection Value ≥110%
Metering Accuracy 1.0 Level
RCD Type A 30mA + 6mA DC
DLB Support
Functional Design HMI 4.3-inch LCD screen + LED indicator bar
Authentication and Payment Methods Free Charge, RFID, Plug&Charge (ISO 15188) and Auto Charge (DIN 70121), APP, NFC
Charging Method NFC (Swipe to charge), scan QR code to charge, App
Charging Mode Automatic full / Fixed power / Fixed amount / Fixed time
Operation Mode Offline no billing, offline billing, online billing
Mode of Payment Credit card / Scan code
Network Interface Ethernet, 4G, Wi-Fi (option), Bluetooth
Protocol EVSE to EV Control point, ISO 15188, DIN 70121
EVSE to Backend OCPP1.6J
Safety Design Security Function Charge gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low temperature protection, lightning protection, emergency stop protection, leakage protection
Executive Standard EN IEC 62196-1:2022, EN IEC 62196-2:2022, EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18)
Environmental Indicators Operating Temperature -35 ~ +55
Working Humidity 5%–95% non-condensing frost
Working Altitude <2000m
Protection Level IP54
Cooling Method Natural air cooling
Noise Control ≤40dB
MTBF 30000 hours

‍
