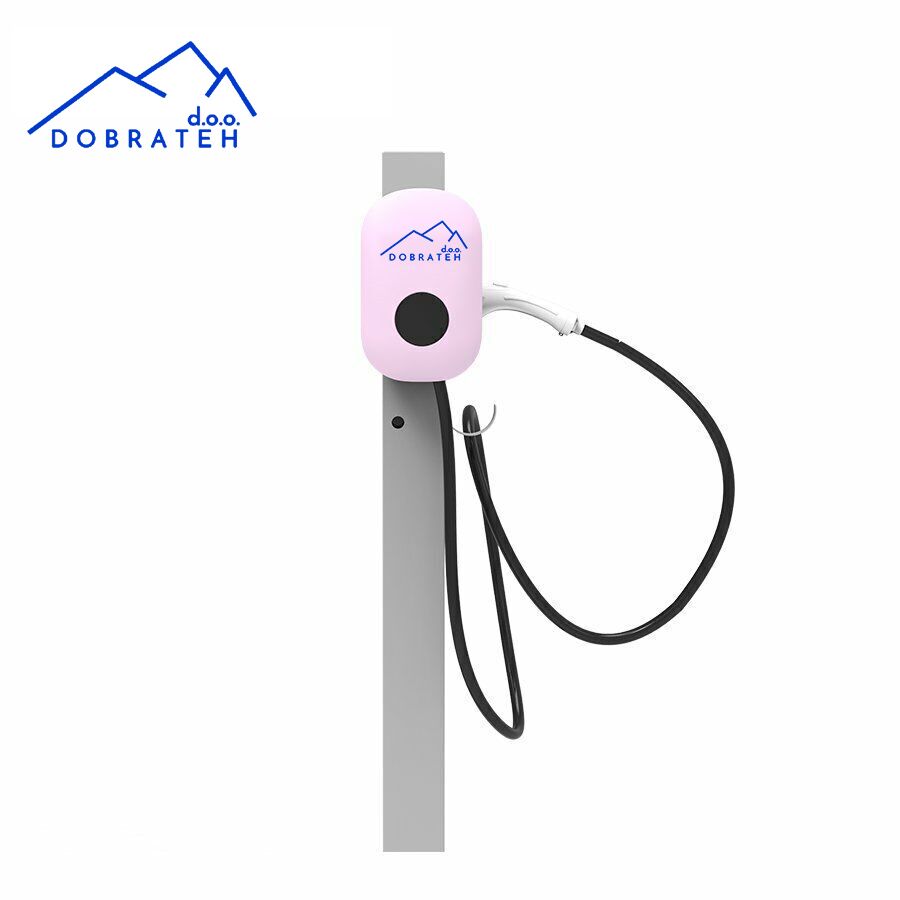

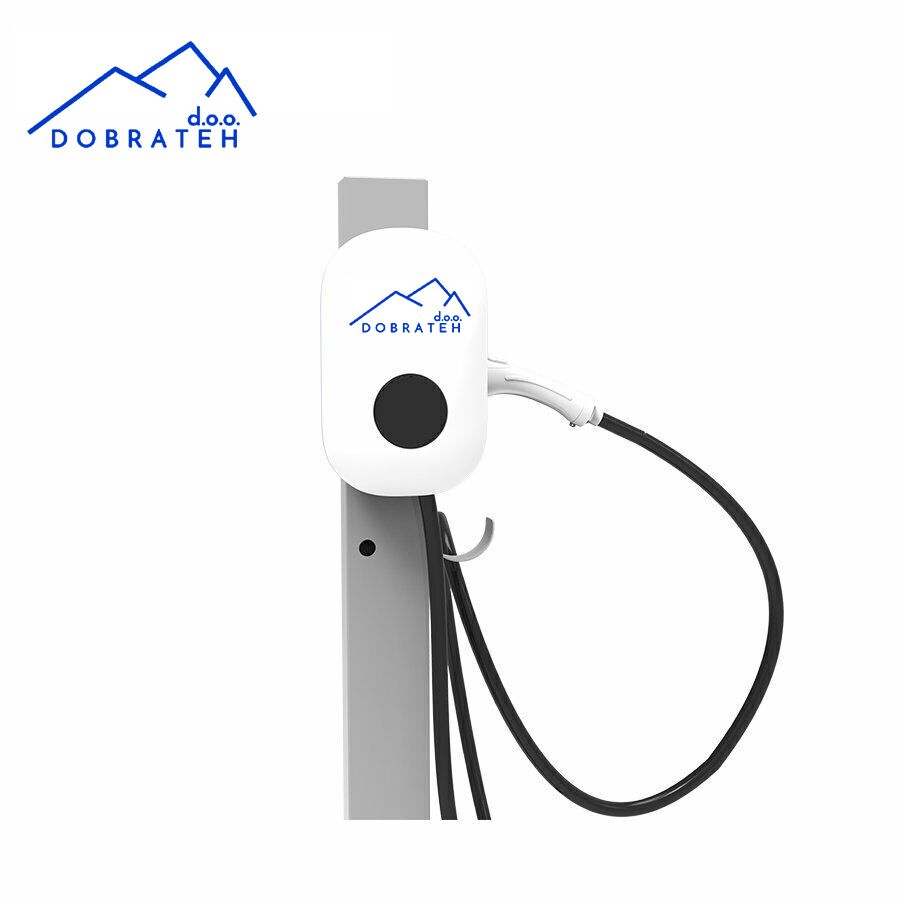

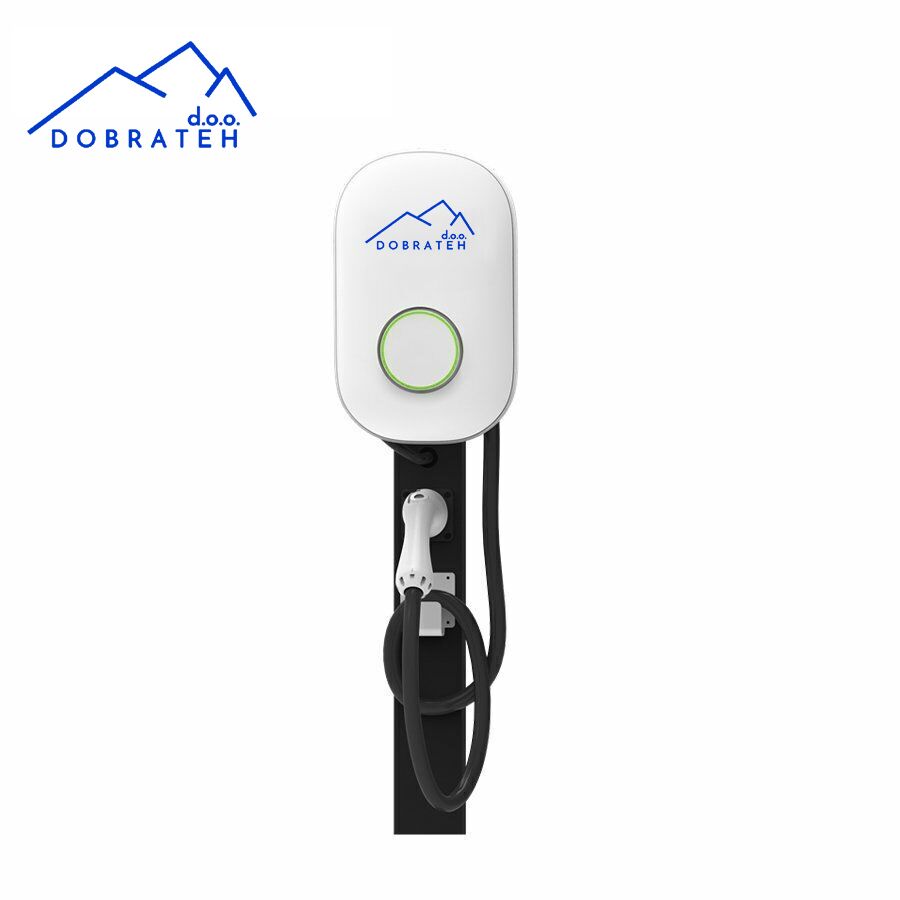

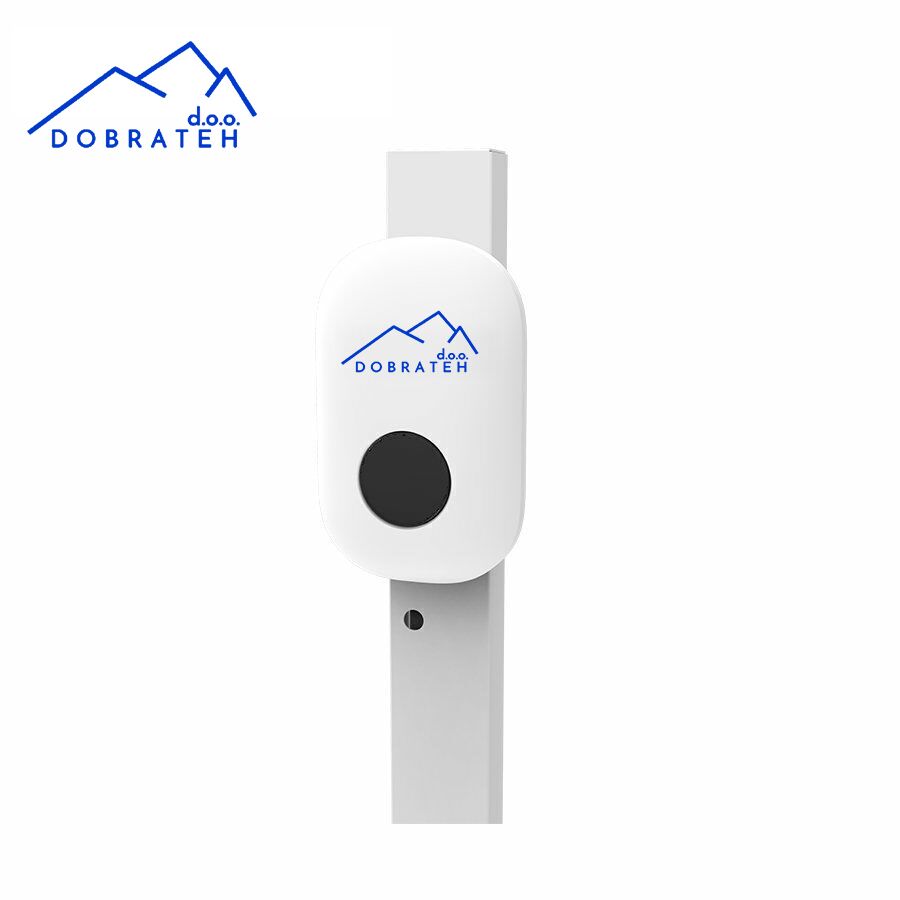

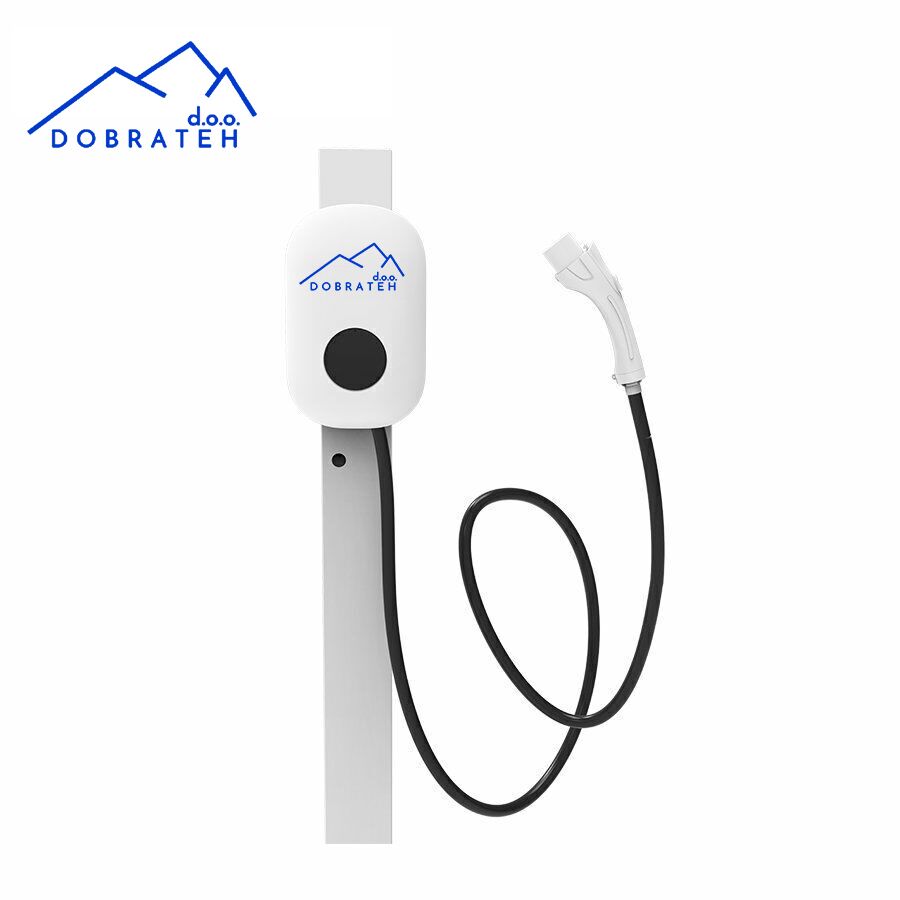

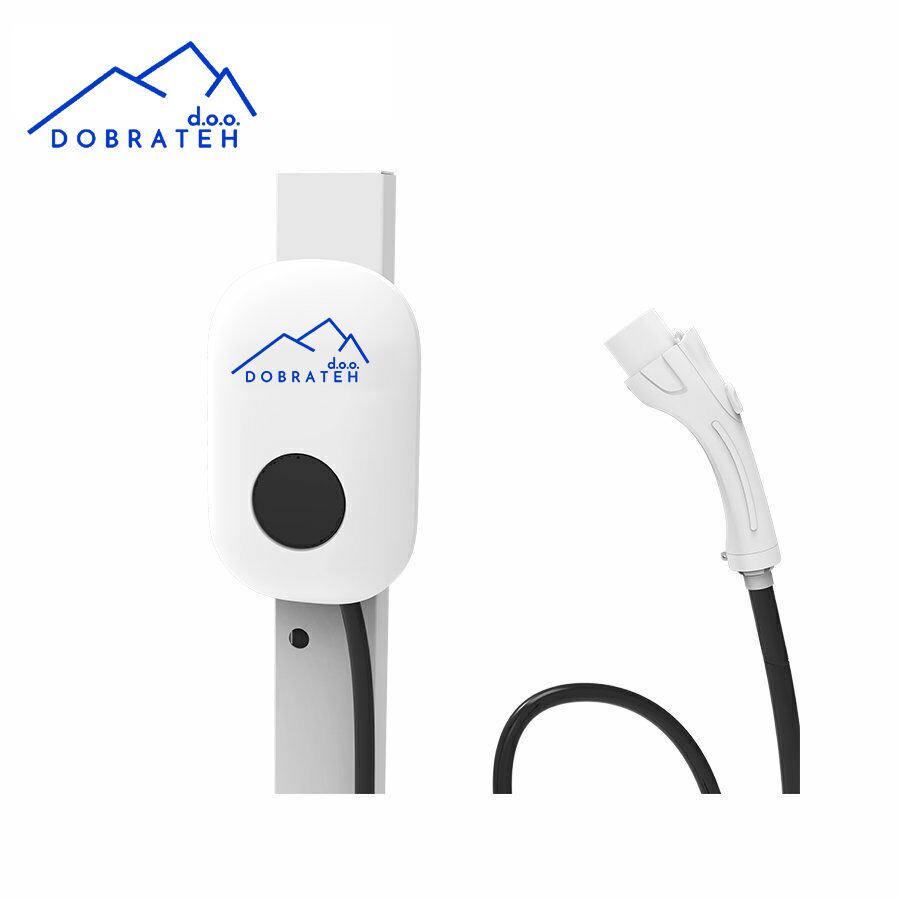

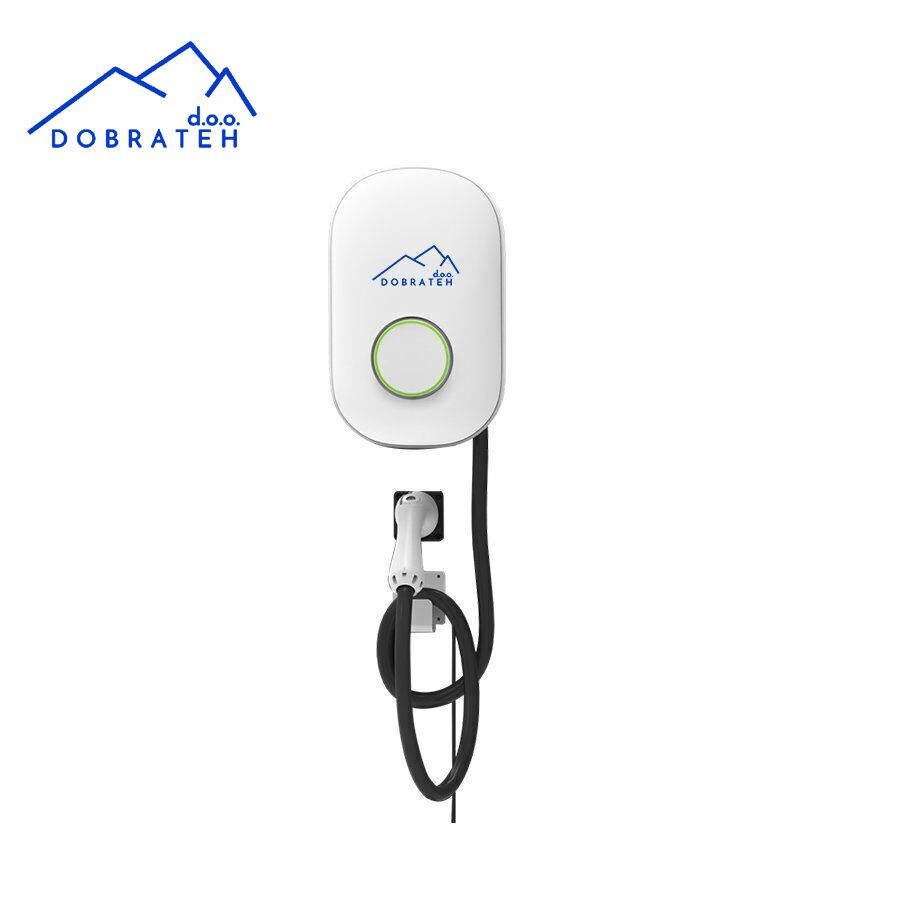

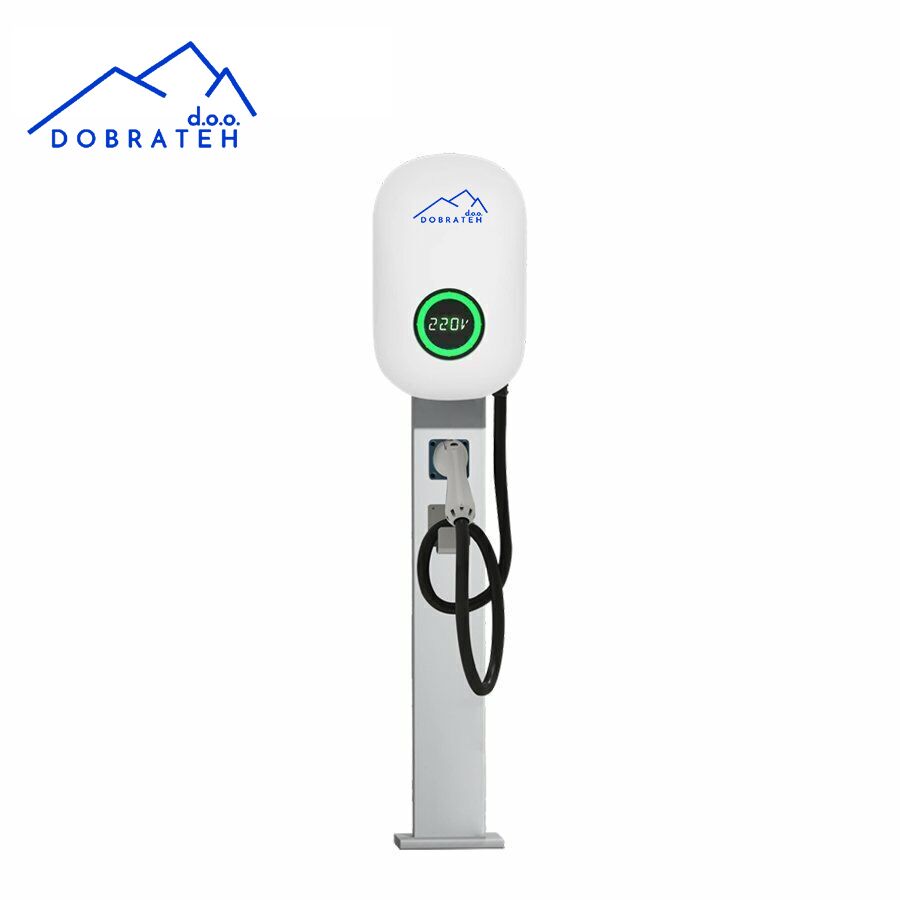

DOBRATEH 3.5kW / 7kW / 11kW Floor-Standed AC Charging Station (X-Vision)

No items found.

7kW Floor-Standed AC Charging Station

  • One installation method: Floor standing mounted ;
  • Adopt AC 220VAC input; The main control board uses a single-chip microcomputer with an embedded operating system, the charging mode is plug and play;
  • Using LED lights with different colors and different flash frequencies to indicate the current state of the charger;
  • Using WIFI module to interact with the user’s mobile phone or laptop and other devices through wireless communication;
  • Use the web and app to set the charging current, remotely stop charging, and monitor charging data;
  • The shape adopts an ABS plastic structure.
Product Parameters
Video
Details

Product Name

AC Charging Station (Plastic Type)

Model

Home Use

AF-AC-3.5-B-A-O-1/2/5-SF

AF-AC-007-B-A-O-1/2/5-SF

AF-AC-011-B-A-O-1/2/5-SF

Specification

Rated Power

3.5kW

7kW

11kW

Charging Device

Installation Method

Wall mounted

Feeding Method

Bottom in and bottom out

Equipment Dimension

304*191*95 (mm)

Equipment Weight

3.5 kg

Cable Length

5m

Electrical Indicators

Input Voltage

AC 220V±20%

Input Frequency

50/60 Hz

Output Voltage

AC 220V±20%

Output Current

Type2: 16 A/1P

Type2: 32 A/1P

Type2: 16 A/3P

Current Limit Protection Value

≥110%

Metering Accuracy

2.0 Level

Functional Design

HMI

LED indicator strip

Charging Mode

Automatic full charge

Charging Method

Plug and charge, Swipe the card, APP

Mode Of Payment

/

Network Way

Bluetooth / WIFI / APP

Safety Design

Operative Norm

EN IEC 62196-1:2022, EN IEC 62196-2:2022, EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1: 2019+A2:2021; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18)

Safety Function

Over-voltage protection, under-voltage protection, overload protection, grounding protection, over-current protection, emergency stop protection, leakage protection and over temperature protection.

Environmental Indicators

Working Temperature

-35~+55

Working Humidity

5%~95% non-condensing frost

Working Altitude

<2000m

Ingress Protection

IP54 (IEC 60529)

Cooling Method

Natural air cooling

Noisy Control

≤40dB

MTBF

17520 hours

Meaning of LED indicator

No.

State

Led Color

1

Charging

Blue Breathing Lighting

2

Prepare Charging

Constant Blue Lighting

3

Pause

Flashing Blue

4

Standby

Green Breathing Lighting

5

POST (Power on self-test)

Constant White Lighting

‍

No.

State

Led Color

Instructions

Recover The Fault

1

CP Exception

Red

Flash once in 5s

Pull out the plug

2

PE Exception

Red

Flash twice in 5s

Turn off the power

3

Normal Fault

Red

Constant Lighting

Pull out the plug

‍Check the packing box for the following items before installation (subject to the packing list)

  • Floor standing mounted type AC charging station(1 set )
  • Installation instructions (1 set)
  • 1 piece of certificate of quality
  • Mounting expansion screws (1 pack)

Installation Environment Requirements

  • The Ingress Protection of this series EV AC charging station: IP54;
  • Ambient temperature -20℃to +50℃;
Common Malfunctions Troubleshooting / Method of Exclusion
When the connector is inserted, the interface does not show a connection or the message “Please start charging by swiping your card.” Verify the connector is fully inserted and the lock is engaged. Ensure a secure connection between the connector and the vehicle.
After swiping the card to start charging, the session stops by itself after a while. This is usually a communication issue. Note any error message, try another connector, and if it persists report it to the manufacturer.
Connector remains locked after charging (locking issue). Complete settlement using the same card that started the session. If it remains locked, use that terminal to unlock after settlement or contact service.
“Jumping gun” (intermittent disconnection) during charging. Ensure the IC card has sufficient balance before starting. If balance becomes insufficient during charging, the session will terminate automatically.
After charging, the connector is locked and cannot be removed. Try starting a short charging cycle and then stop to trigger release. If it still won’t unplug, contact the manufacturer for maintenance.
Ammeter does not display current after starting charge. Check the meter wiring for reversed phase/neutral or other miswiring and correct it if necessary.
Display does not light up after power on. If LEDs show power but the display remains blank, replace the display module.
Grounding abnormality / not grounded. Verify proper grounding. With correct earth connection: (1) when the connector is absent the 12V auxiliary indicator should be blue; (2) when inserted the 6V auxiliary indicator should be green.

Maintenance And Preservation Of EV AC Charging Station

  • Charging stations should be installed outdoors in enclosed areas.
  • When the charging cycle is finished or when the user terminates the charging cycle disconnect

the cable before storing the cable and inserting the plug into the storage socket on the wall of the charger.

Please note: In the process of charging station transportation, the charging station is packed firmly and the loading and unloading direction is marked. It is forbidden to store and transport the charging station upside down. The charging unit should be adequately secured during transport to avoid strong vibration and turbulence to damage the outer packaging of the equipment.

Note: Non-professional personnel are strictly prohibited from installing the EV AC charger.

‍

‍

‍
