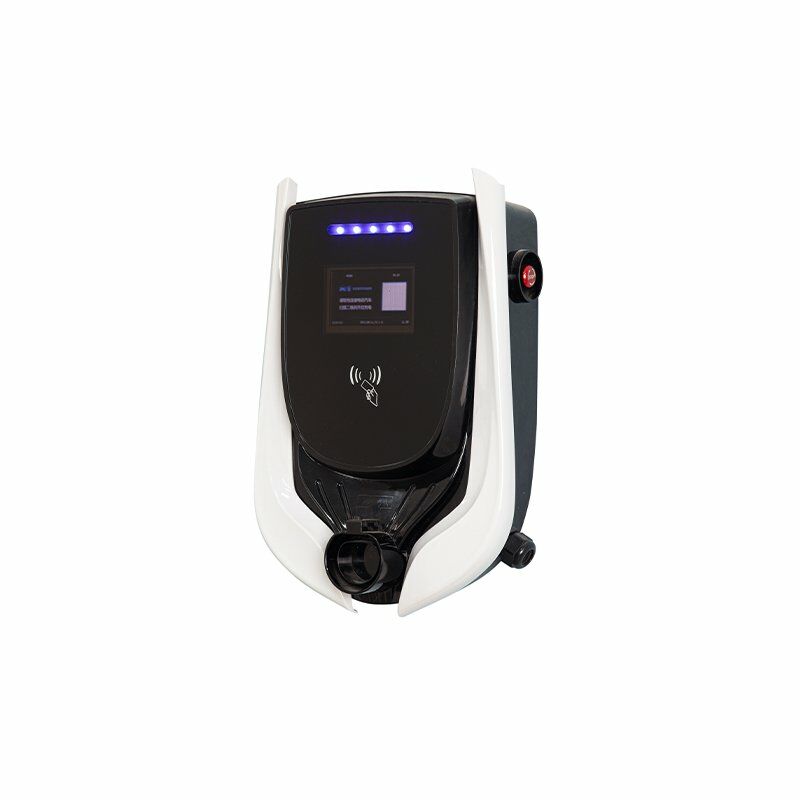

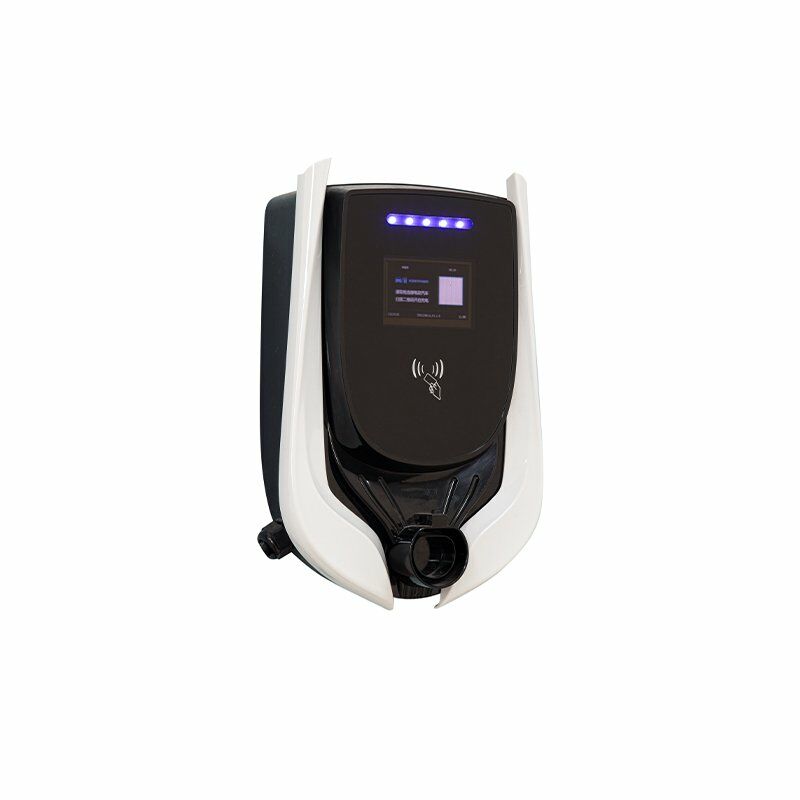

7kW Wall-Mounted / Floor-Standed AC Charging Station OCPP (New style)

Model No.

AF-AC-07-B-A-O-2/4/6-SD (New style)

Rated Power

7 kW

Installation Method

Wall-mounted / Floor-standing

Feeding Method

Bottom in, bottom out

Equipment Dimensions

450 × 305 × 130 mm (plastic enclosure)

Equipment Weight

16 kg

Input Voltage

AC 220 V ±20%, L + N + PE

Input Frequency

50 Hz ±10%

Output Voltage

AC 220 V ±20%

Rated Input / Output Current

32 A

Current Limit Protection

≥ 110%

Metering Accuracy

Class 1.0

HMI

4.3-inch touch screen, LED indicator strip

Operation Mode

Offline (no billing), offline billing, online billing

Charging Mode

Automatic full charge / Fixed power / Fixed amount / Fixed time

Communication Protocol

OCPP 1.6J

Charging Method

Card swipe / QR code / App payment / EVCCID / MAC vehicle (optional)

Mode of Payment

Credit card / QR code

Network Connectivity

Ethernet, 4G

Safety Functions

Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, reverse polarity protection, lightning protection, emergency stop protection, leakage protection

Working Temperature

-30 °C to +50 °C

Working Humidity

5%–95% non-condensing

Working Altitude

≤ 2000 m

Ingress Protection

IP54

Cooling Method

Natural air cooling

Noise Level

≤ 40 dB

MTBF

30,000 hours
