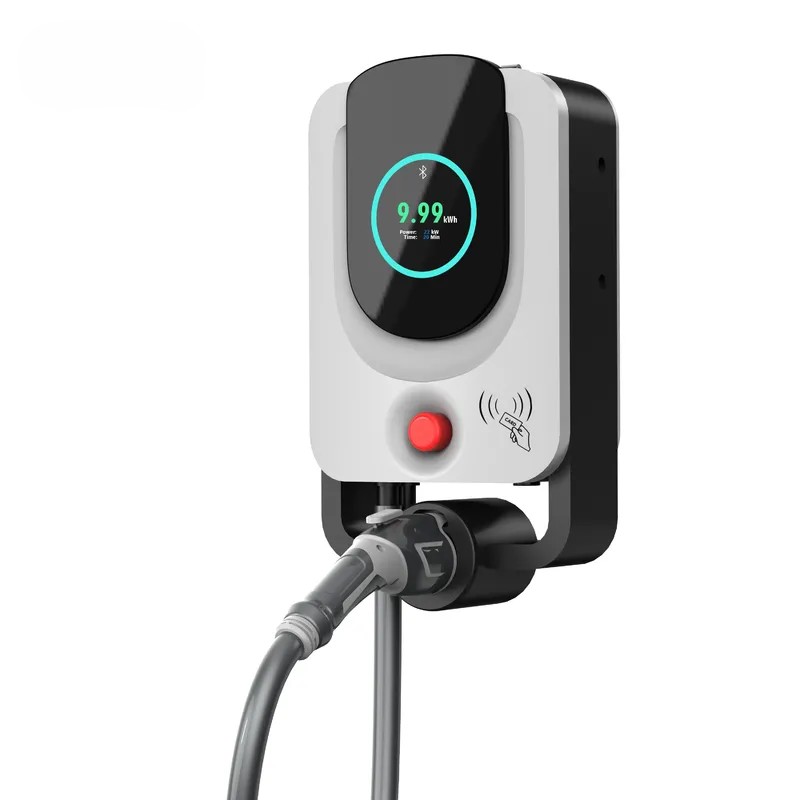

Wall-Mounted/Floor-Standed AC Charging Station (New style) 7kW

No items found.

Charging electric vehicles with on-board chargers is mainly suitable for the following places:

Large, medium, and small electric vehicle charging stations
All kinds of electric vehicle parking spaces in public places, such as urban residential quarters, shopping plazas, power business premises, etc.
High-speed service areas, stations, docks, and other transportation hub areas
Real estate and engineering construction acceptance needs

Housing material: thermoplastic, flameretardant grade UL94 V-0

Rated working current: 32A
Working voltage: 220V±20%

‍

Model No.		AF-AC-07-B-A-O-1/3/4-MC
Rated Power		7 kW

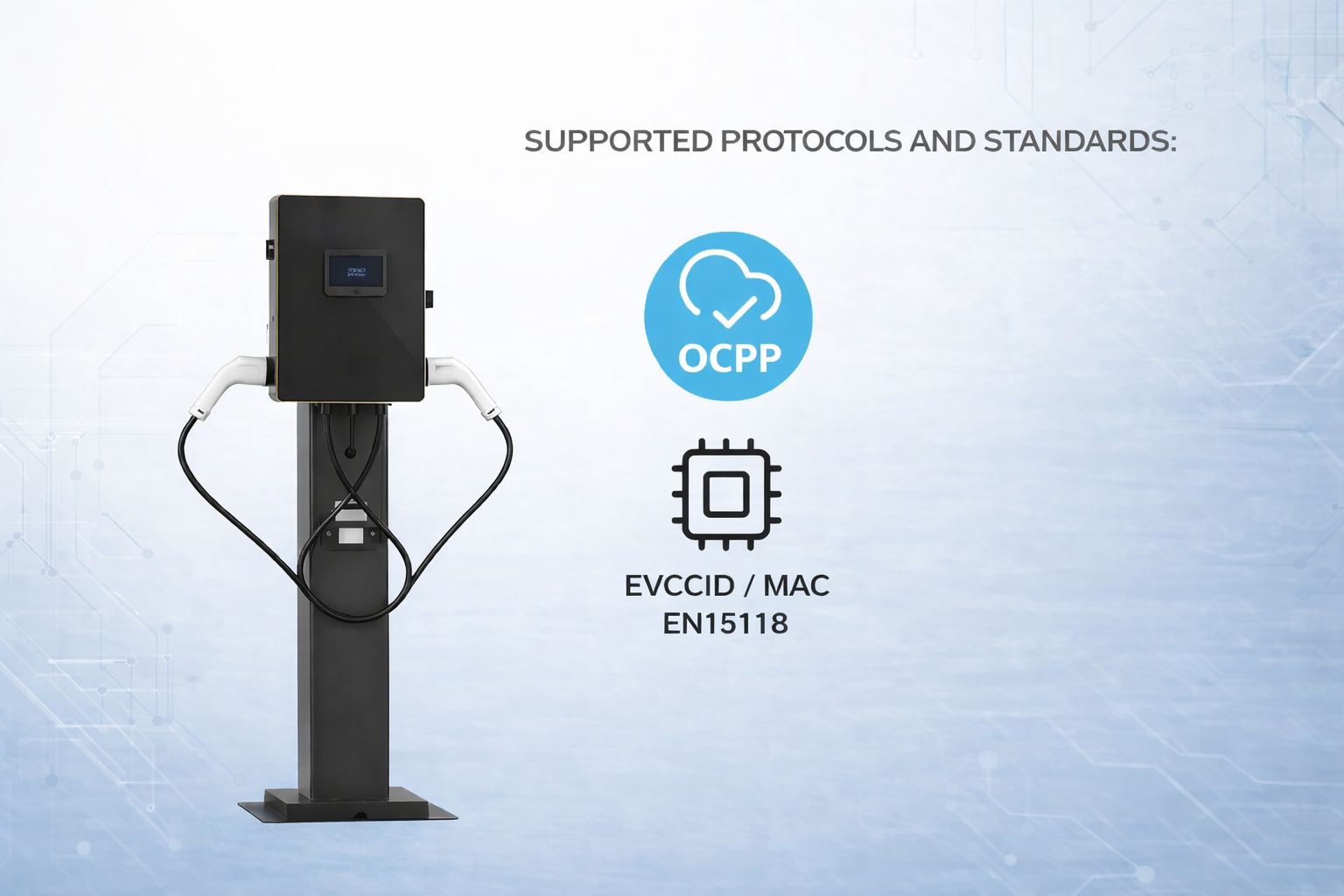

Installation Method		Wall-mounted / Floor-standing
Feeding Method		Bottom in, bottom out
Equipment Dimensions		350 × 250 × 150 mm (plastic enclosure)
Equipment Weight		3.5 kg
Input Voltage		AC 220 V ±20%; L + N + PE
Input Frequency		50 Hz ±10%
Output Voltage		AC 220 V ±20%
Rated Input / Output Current		32 A
Current Limit Protection		≥ 110%
Metering Accuracy		Class 1.0
HMI		LED indicator strip
Charging Method		Plug and charge / App
Dynamic Load Balance		Yes
Network Connectivity		Bluetooth / Wi-Fi / 4G
Safety Functions		Overvoltage protection, undervoltage protection, overload protection, grounding protection, overcurrent protection, leakage protection, over-temperature protection
Working Temperature		-30 °C to +50 °C
Working Humidity		5%–95% non-condensing
Working Altitude		≤ 2000 m
Ingress Protection		IP54
Cooling Method		Natural air cooling
Noise Level		≤ 40 dB
MTBF		30,000 hours

‍

‍
