AMPPAL DC Charge Connector

No items found.

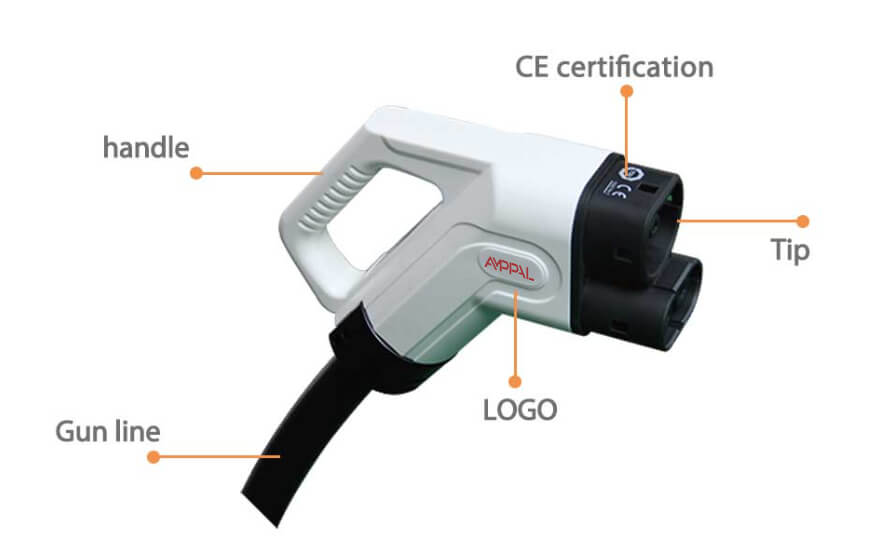

DC Charge Connector

Product Characteristics

Housing Material: Thermoplastic

Flame retardant grade: UL94V-0

Terminals: copper alloy, silver plated on the surface

‍

Product Parameter
Details
Product NameDC Charge connector
Rated Current80A/125A/200A/250A
Rated Voltage400/750VDC
Contact Resistance0.5mΩ Max
Pressure Resistant3200V
Number Of Signal Contacts＜50K
Signal Contact Temperature Rise70N＜F＜140N
Mechanical LifeNo-load plugging and unplugging >1000 times
Working Temperature-30℃~+50℃
Impact ResistanceCan withstand a drop of 1 meter and being crushed by a 2-ton vehicle
Insulation Resistance＞2000MΩ
Protection LevelIP67
PinAluminum alloy, surface silver plated + top insulation
Shell MaterialThermoplastic, flame retardant grade UL94 V-0
SealsRubber or silicone

‍

Rated current Cable specification Remarks
63A /80A 2X16mm²+16mm²+3X2X0.75mm²TPU,φ26/TPE,φ32 Shell color: white

Cable color: black
125A Single phase 2X35mm²+25mm+²3X2X0.75mm²TPU,φ31.5/TPE,φ34
160A Single phase 2X50mm²+25mm3X2X0.75mm²TPU, φ34.5/TPE,φ37
200A Single phase 2X70mm²+25mm²3X2X0.75mm²TPU, φ37/TPE,φ40

‍
