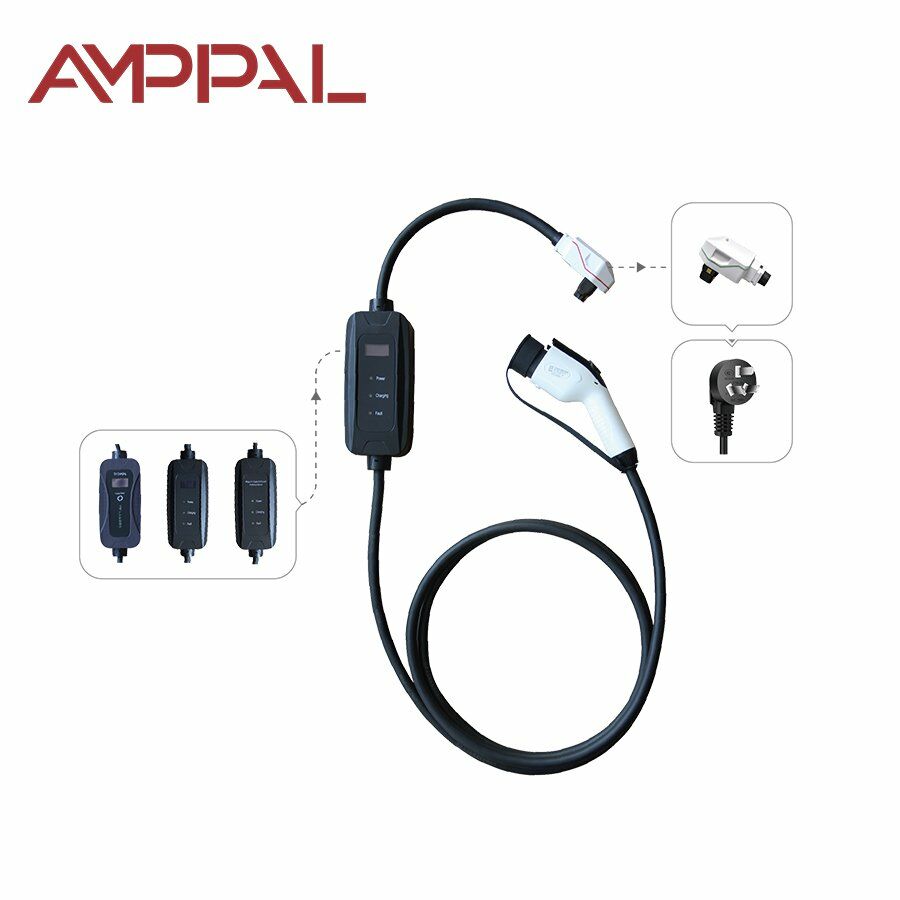

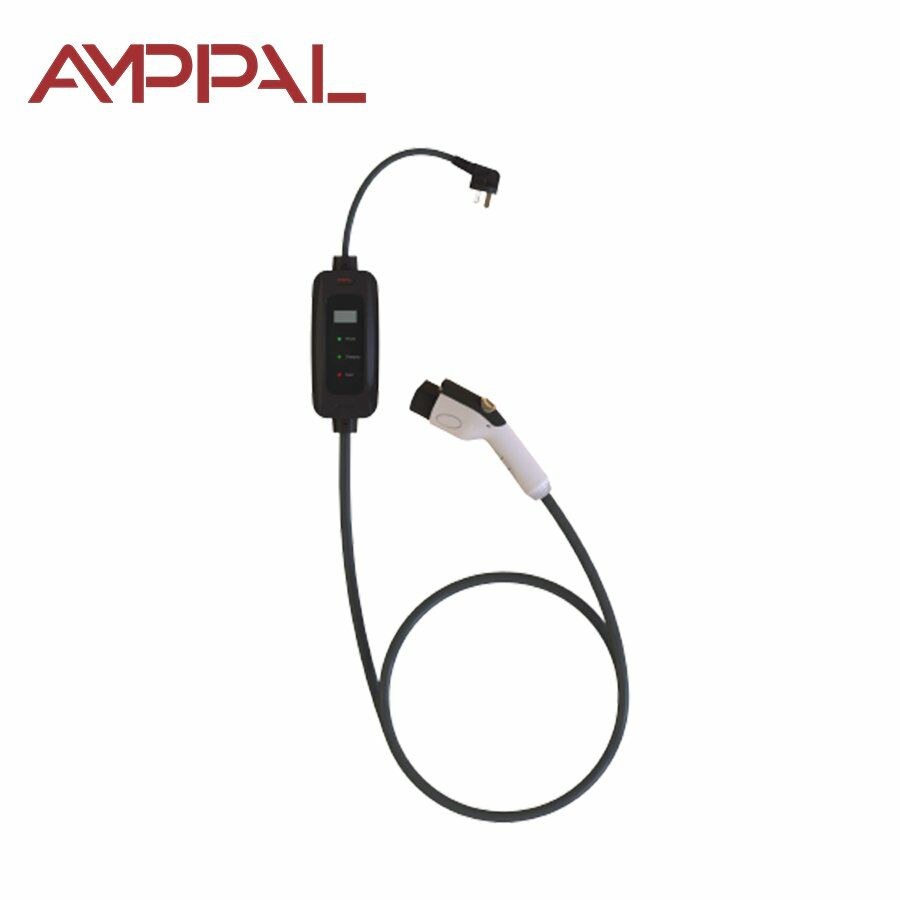

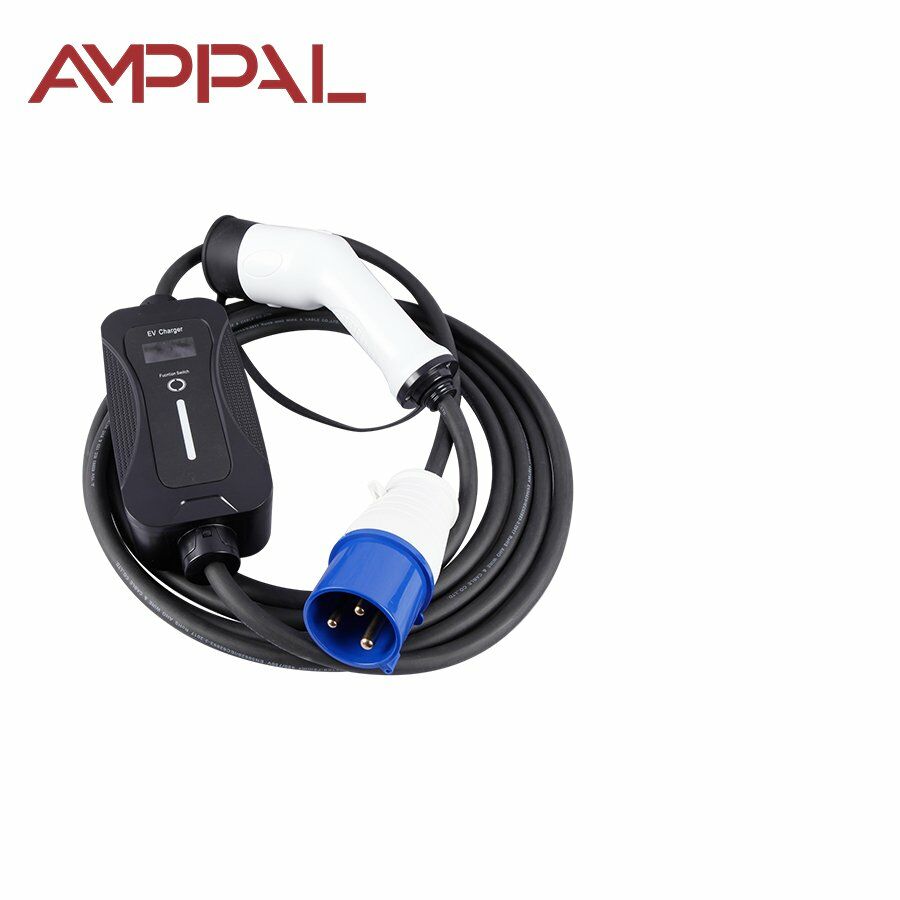

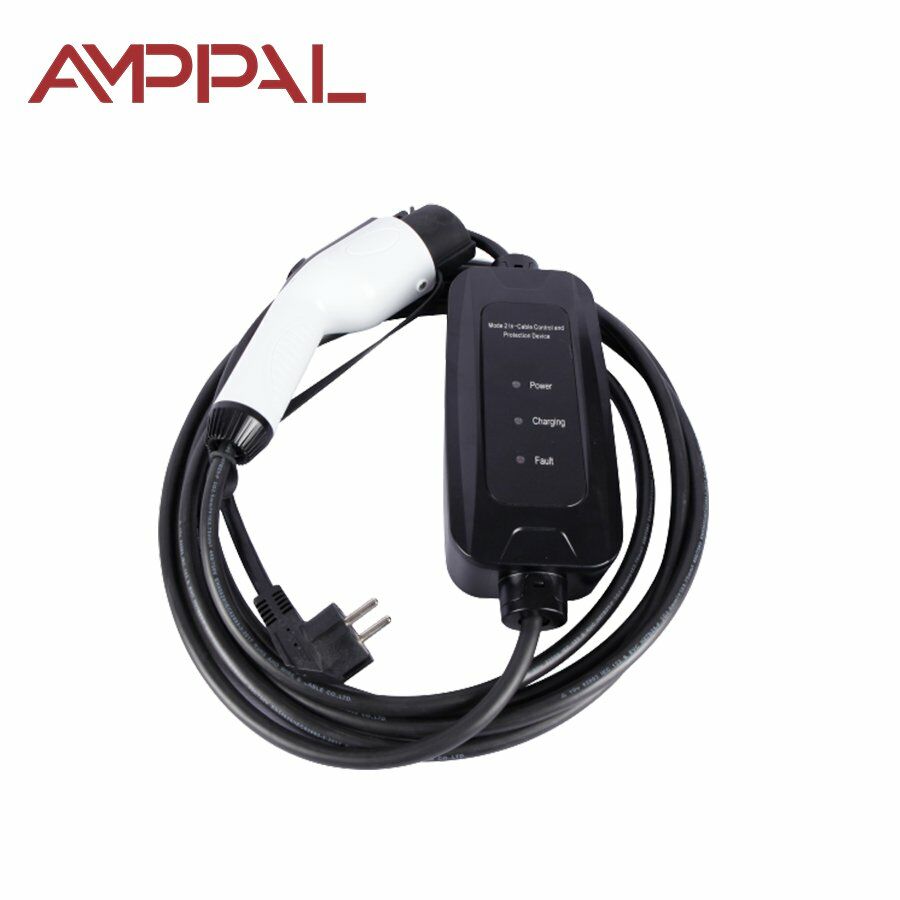

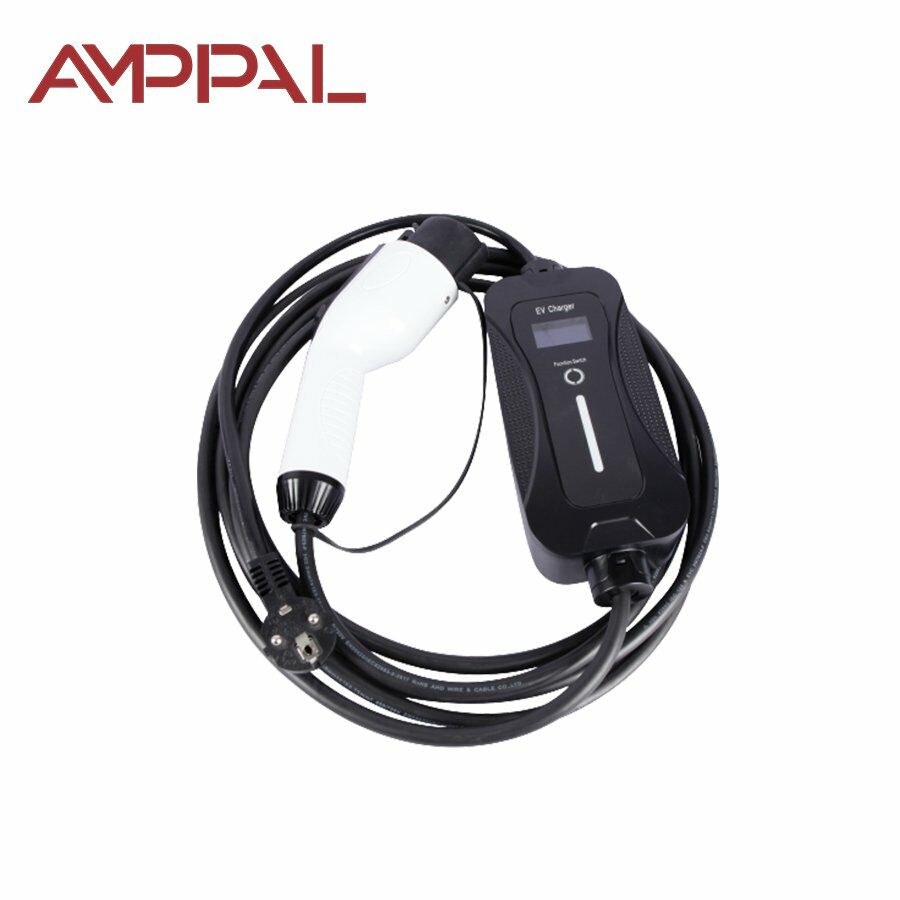

AMPPAL 3.5/7kW Portable AC Charging Station (with screen)

No items found.

AMPPAL 3.5/7kW Portable AC Charging Station

  • Housing material: thermoplastic, flame retardant grade UL94 V-0
  • Terminal: Copper alloy, silver plated on the surface
  • Working environment temperature: -20℃ ~+50℃
  • Rated working current: 16A/32A
  • Working voltage: 250V
  • Insulation resistance: >1000MQ(DC500V )

‍

Product parametrs
Details
Product Name Portable AC Charging Box (Plastic Type)
Model AF-AC-3.5kW AF-AC-7kW
Overall Dimensions (mm) —
Human–Computer Interaction LED indicator strip or with screen
AC Power Supply 220VAC ±20%; 50 ±10Hz
Rated Input & Output Current 16 A 32 A
Rated Output Power 3.5 kW 7 kW
Working Environment Altitude: <2000 m; Temperature: -30 ~ +55°C
Charging Method Plug & Charge
Networking Method —
Operation Mode —
Executive Standard IEC 62752:2016
Charging Cable Length Standard 5 m (optional)
Protection Grade IC-CPD IP67; Vehicle Connector IP54
Protection Functions Over-voltage protection, under-voltage protection, overload protection, grounding protection, over-current protection, leakage protection, over-temperature protection

Fault Code Description

The red light blinks according to the fault code(on 0.5s， off 0.5s)， then off 2s，move in cycle

Charging Mode Indicator state
Power Charging Fault
Idle Mode On Off Off
Connected — No Charging On-Off (1s) Off Off
Charging On On-Off (0.5s) Off
Charge Complete On On Off
Over-Temp Protection On Off On-Off 1 time
Low-Volt Protection On Off On-Off 2 times
High-Volt Protection On Off On-Off 3 times
Ground Protection On Off On-Off 4 times
Over-Curr Protection (t) On Off On-Off 5 times
Over-Curr Protection (p) On Off On-Off 6 times
Leakage Protection On Off On-Off 7 times
Relay Fault On Off On-Off 8 times
Communication Failure On Off On-Off 9 times

‍
