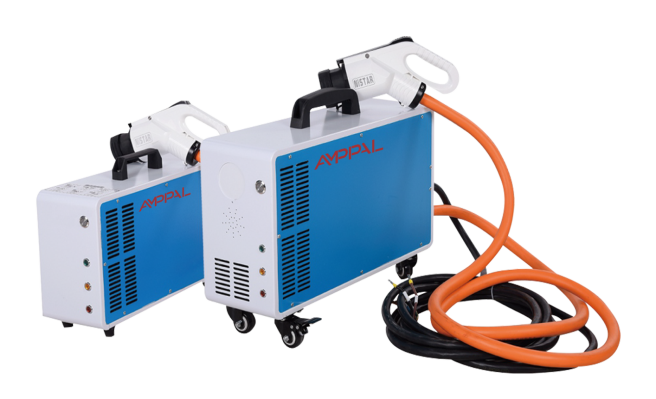

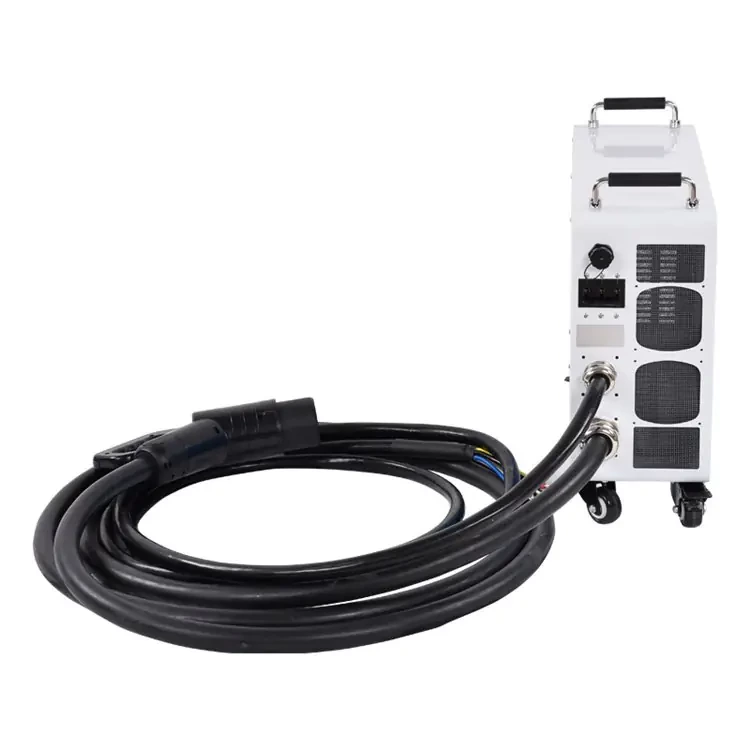

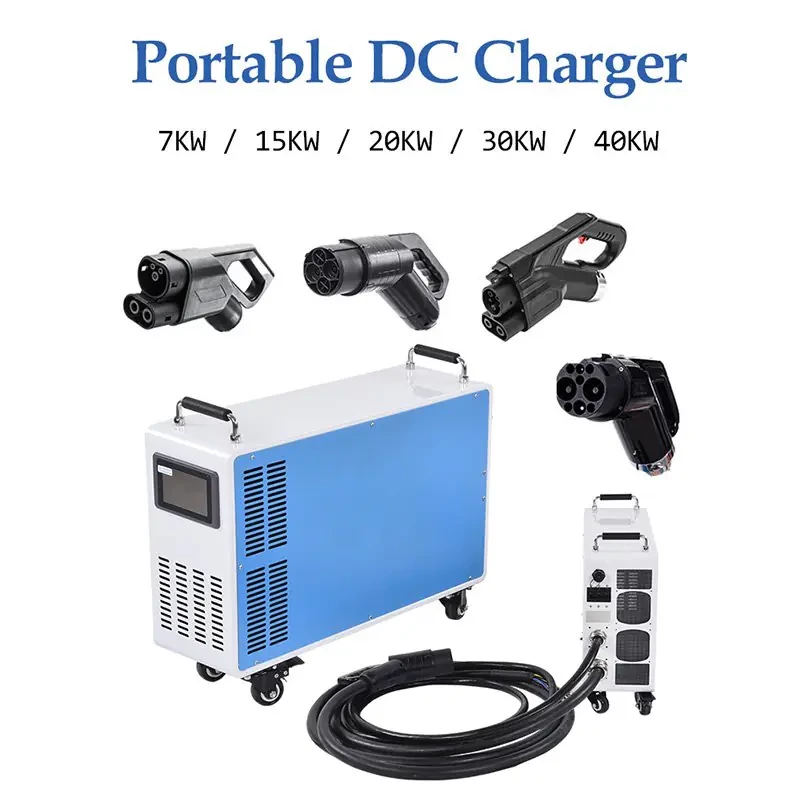

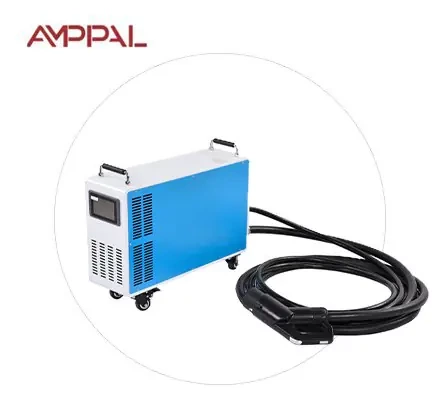

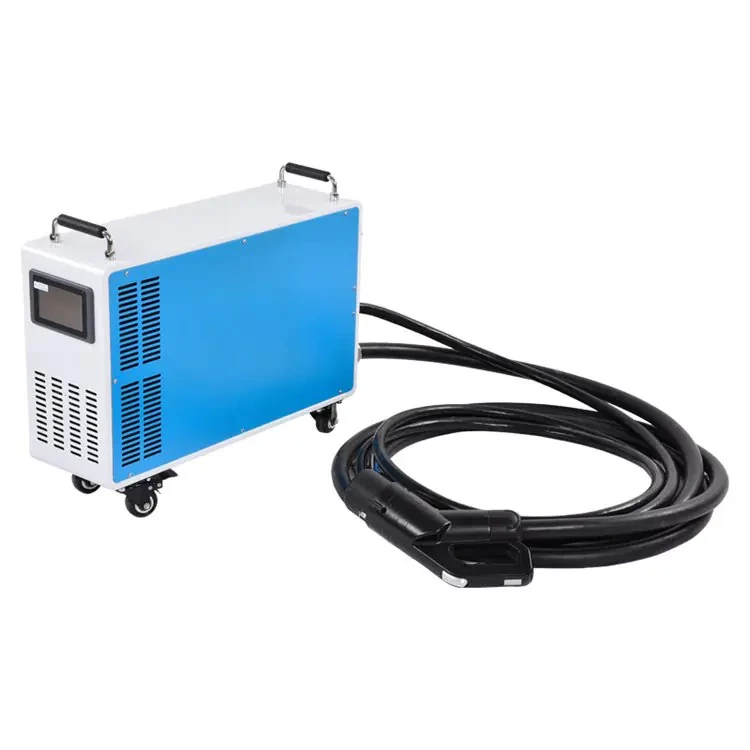

Movable DC Charging Station 7 / 15 / 20 / 30 kW

Portable DC charging stations for private use (private cars, logistics vehicles, trucks, etc.), operating companies, and car rental services. Suitable for yard delivery and especially for rapid deployment in locations with limited space.

Housing material: coated steel, thermoplastic, flame retardant grade UL94 V-0
Working environment temperature: -30℃ to +50℃
Working voltage: 220 / 380 V ±20%

‍

Product Parameter
Details

Product Name

Portable DC Charging Station

Model

AF-DC-7KW

AF-DC-15KW

AF-DC-20KW

AF-DC-30KW

Rated Power

7 kW

15 kW

20 kW

30 kW

Dimensions (mm)

345 × 175 × 265

540 × 375 × 195

540 × 375 × 195

540 × 375 × 195

User Interface

Digital tube, LED

Output Voltage

220–450 V

200–750 V

50–550 V

200–750 V

Power Factor

≥ 0.99 (above 50% load)

HMI

LED indicator

Working Environment

Altitude: ≤ 3000 m / ≤ 2000 m; Temperature: -30 °C to +50 °C

Charging Method

Plug and charge

Networking Method

/

Input Frequency

55 ±10 Hz

Protection Functions

Overvoltage, undervoltage, overcurrent, short circuit, surge, leakage protection

Charging Interface

IEC 62196

Charging Cable Length

Standard 5 m (optional)

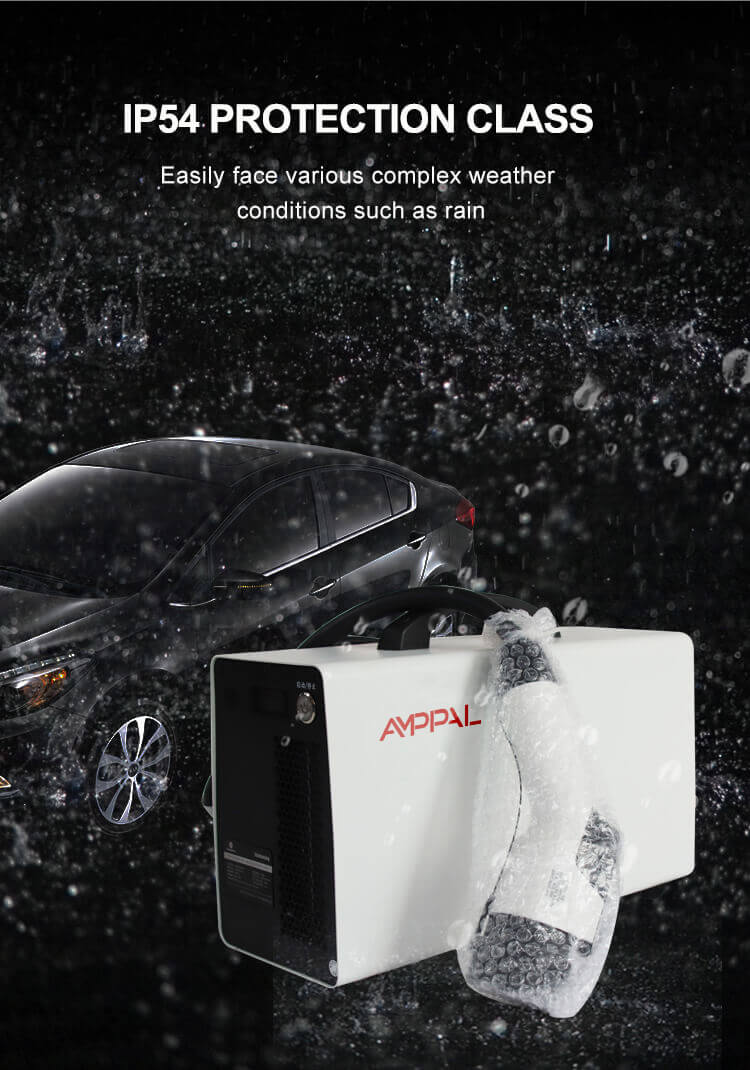

Protection Class

IP54

IP43

‍
