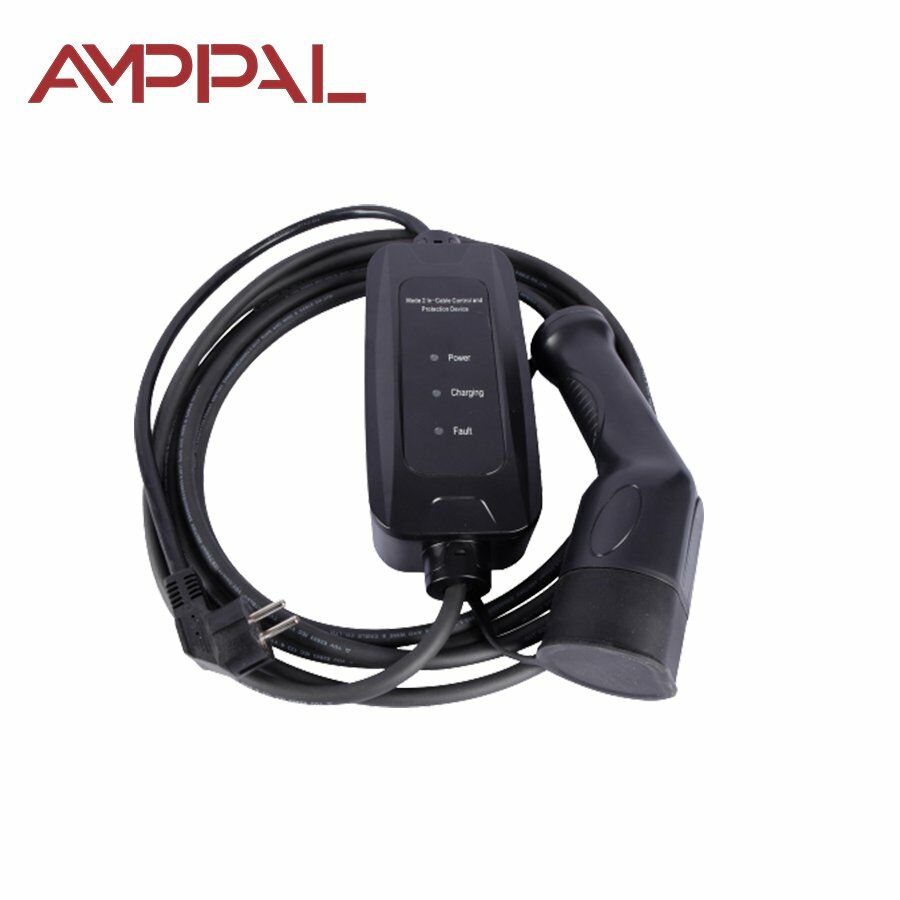

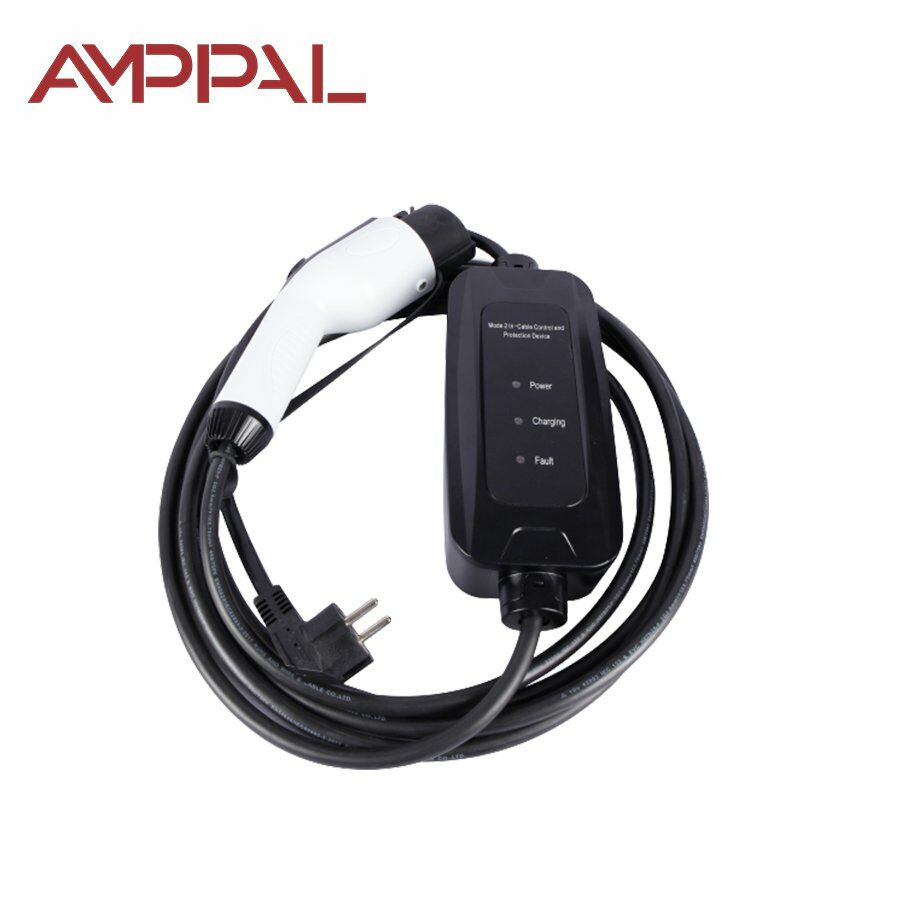

EV Portable AC Charging Box LED (Fixed Current) 3.5 / 7 kW

Model

AF-AC-3.5 kW

AF-AC-7 kW

Rated Power

3.5 kW (fixed)

7 kW (fixed)

Rated Current

16 A (fixed)

32 A (fixed)

Cable Length

5 m (optional)

Equipment Weight

2.1 kg

Input Voltage

AC 220 V ±20%, L + N + PE

Input Frequency

50 ±10 Hz

Output Voltage

AC 220 V ±20%, L + N + PE

Insulation Resistance

> 10 MΩ

Contact Resistance

≤ 0.5 mΩ

Insertion & Extraction Force

≤ 100 N

HMI

LED

Charging Method

Plug and charge

Payment Method

/

Operation Mode

/

Networking Method

/

Standards Compliance

IEC 62752:2016

Working Temperature

-30 °C to +50 °C

Working Altitude

≤ 2500 m

Working Humidity

5%–95% non-condensing

Ingress Protection

IC-CPD IP67, vehicle connector IP54

Storage Temperature

-40 °C to +80 °C

Operating Humidity

5%–95% RH
