AMPPAL 240kW-1440kW Charging Team

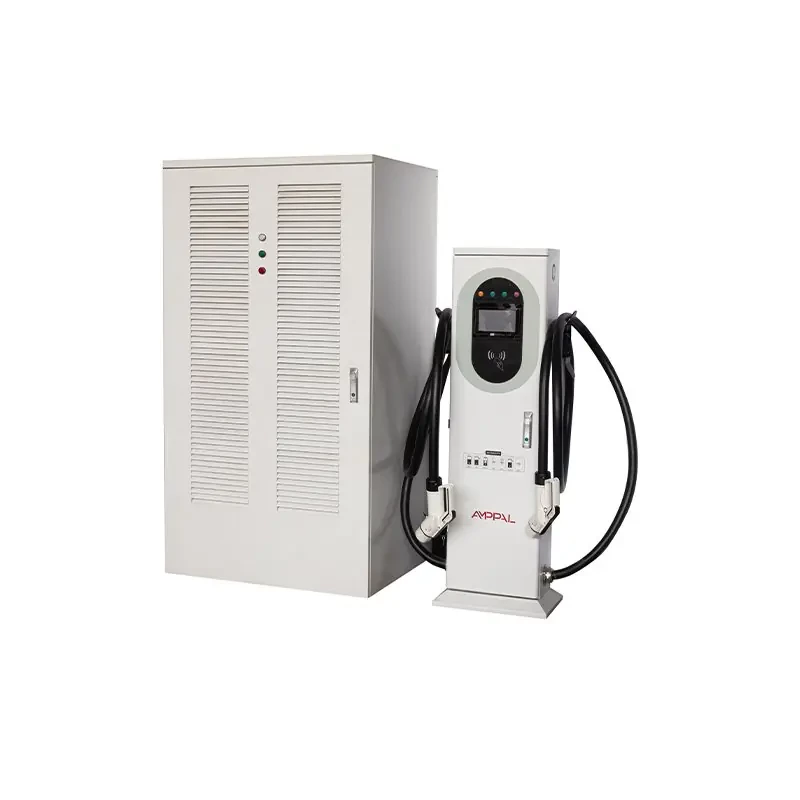

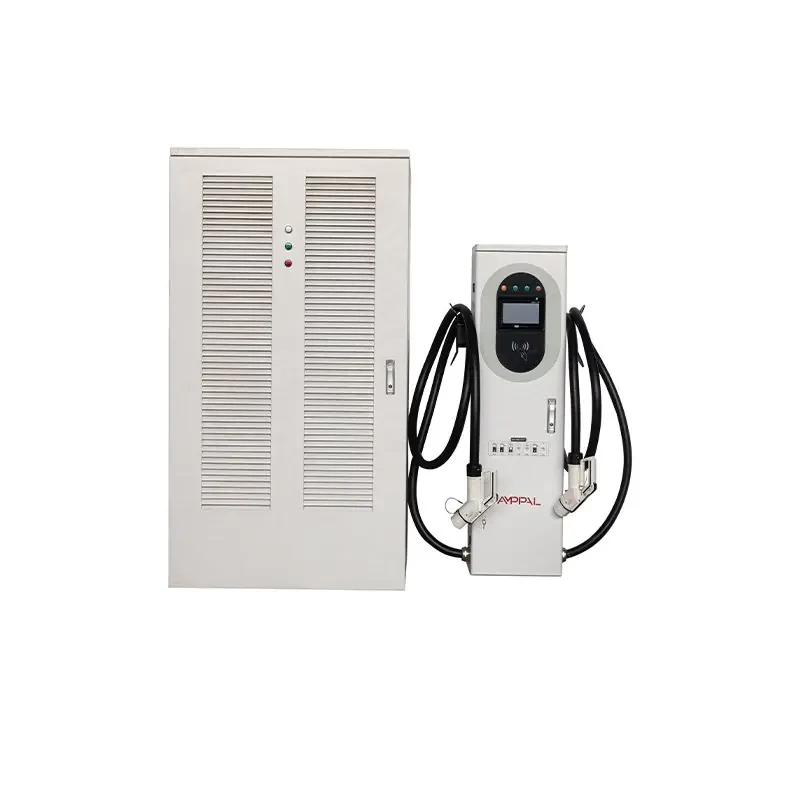

Model		Main Cabinet		Split Terminal
		Commercial Use
Specification	Rated Power	480 kW	600 / 720 / 960 kW	600 kW
Device Info	Installation Method	Floor-stand, Vertical
	Feeding Method	Bottom in and out
	Equipment Dimension (mm)	1000 × 800 × 2000	1300 × 1000 × 2200	1630 × 500 × 370
	Input Voltage	AC380V ±15%
	Input Frequency	50 ±10 Hz
	Output Voltage	200–1000 VDC
	Output Current	800 / 1200 / 1600 / 2000 / 2400 / 3200 A		600 A
	Cable Length	5 m (optional)
	Metering Accuracy	Level 1.0
Electrical Indicators	Efficiency	≥94.5%
	Power Factor	≥0.99 (above 50% load)
Functional Design	HMI	7-inch high-brightness color touch screen, LED indicator
	Charging Mode	Automatic full charge / Fixed energy / Fixed amount / Fixed time
	Charging Method	NFC (Swipe to charge), scan QR code, Password
	Mode of Payment	RFID, QR code, Credit card, Password, APP
	Network	Ethernet, 4G, LTE, Wi-Fi 802.11 b/g/n (Optional, 2.4/5 GHz)
Safety Design	Operative Norm	EN IEC 62196-1:2022; EN IEC 62196-3:2014; EN IEC 61851-1:2019; EN IEC 61851-23:2014; EN IEC 61851-21-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18)
	Safety Function	Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection.
Environmental Indicators	Working Temperature	-35 ~ +55°C
	Working Humidity	5%–95% non-condensing frost
	Working Altitude	≤2000 m
	Ingress Protection	IP54
	Cooling Method	Forced air cooling	Liquid cooling
	MTBF	30,000 hours

Protection Functions

Input and output of the EV charger station are electrically isolated.
The output includes a back-feed prevention device to stop the vehicle battery pack from charging the charger’s output filter capacitor and to prevent instantaneous high current at the charger’s output terminal when the battery pack is connected.
Specify the charger’s voltage rating and insulation class; ensure compliance with applicable “Electric Vehicle Conductive Charging Device” regulations.
Designed and manufactured according to IEC 61851-1:2017 and IEC 62196-2:2016.

Check the packing box for the following items before installation (subject to the packing list)

Floor stand type DC charging Station(1 set )
Test card 2 pieces (with a card reader or not)
Installation instructions (1 set)
1 piece of certificate of quality
Key (2 pieces)

Installation Environment Requirements

1、This series EV DC charging station is the outdoor type, Ingress Protection: IP54;

2、Ambient temperature : -20℃ to +50℃;

Installation Method

This series of DC charging stations can be installed vertically according to the requirements

Installation size, as the Figure 1 and Figure 2：

Figure 1 Floor Stand Type Installation Method

Figure 2 Floor Stand Type Installation Method

‍

Common Malfunctions	Method Of Exclusion
Air switch burnt out	Replace the air switch.
The information acquisition board is burned out	Contact the manufacturer: replace the information acquisition board.
Module damage	Contact the manufacturer:replace the module.
Report system failure	It may be caused by various reasons such as the module and the collection board. It is recommended to contact the manufacturer.
The platform can’t connect to the Internet	Check the network cable interface, whether the network cable is plugged in properly. The network communication board is faulty and replaced.
DC Undervoltage	Check whether the fuse is burned and whether the relay is closed
AC Undervoltage	Check the wiring and switch of the power distribution cabinet for any abnormality.
The power meter on the charging Station shows zero	Unplug and plug the wires on the circuit board again, the monitoring board is faulty and replace it.
Locking card phenomenon	When the charging is complete, remember to swipe the card to pay, if the card lock phenomenon occurs, please go to the last charging machine to swipe the card and pay the fee to unlock it.
Jumping the gun phenomenon	Confirm that the IC card balance is sufficient when swiping the card, otherwise, it will automatically stop charging during the charging process.

‍

Symptoms of common faults of the indicator lights on the module panel

There are three indicator lights on the module panel, which are the power indicator (green light), the protection indicator (yellow), and the fault indicator (red), and the fault indicator is as follows:
‍

Indicator Light	Normal Status	Abnormal State	Abnormal Problem
Power Indicator (Green)	On	Off	No input voltage; module’s internal auxiliary power supply does not operate
Protection Indicator (Yellow)	Off	On	AC input overvoltage, undervoltage, or overtemperature
Off	On	Communication interruption or manual mode
Fault Indicator (Red)	Off	On	Output overvoltage, module address duplication, or severe current imbalance
Off	Flashing	Faulty fan
Note: When the module is in manual mode, the yellow light flashes.

‍

‍
