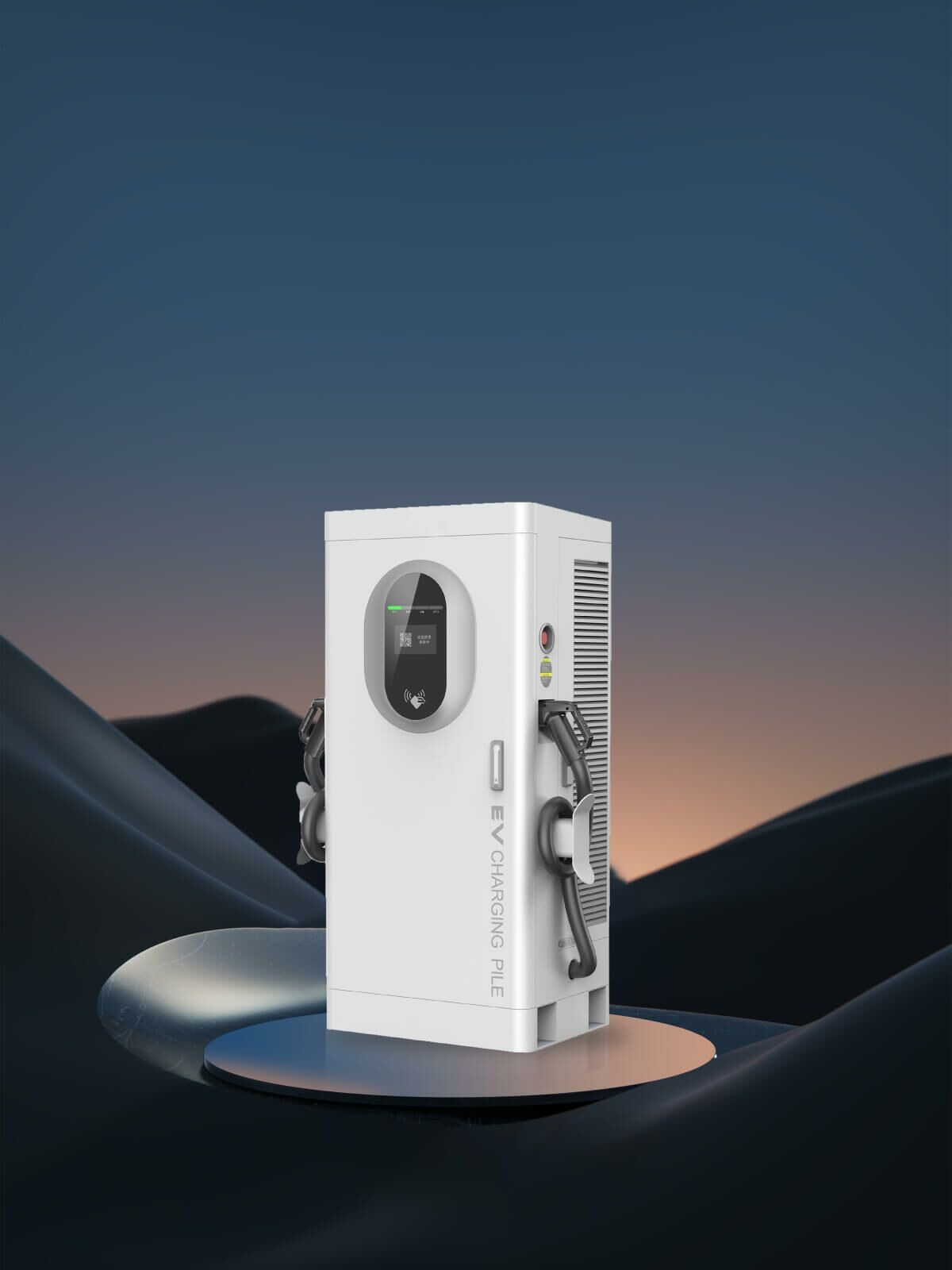

Integrated DC Charging Station 180–240 kW

Model No.

AF-DC-180-Y-B-O-3/4/5/6-H

AF-DC-200-Y-B-O-3/4/5/6-H

AF-DC-240-Y-B-O-3/4/5/6-H

Rated Power

180 kW

200 kW

240 kW

Installation Method

Vertical

Feeding Method

Bottom in and out

Equipment Dimensions

1800 × 800 × 600 mm

Input Voltage

AC 380 V ±15%

Input Frequency

50 ±10 Hz

Output Voltage

200–(750)1000 V DC

Single Gun Output Current Range

0–200 A

Cable Length

5 m (optional)

Metering Accuracy

Class 1.0

Current Limit Protection Value

≥ 110%

Voltage Stabilization Accuracy

≤ ±0.5%

Current Stabilization Accuracy

≤ ±1%

Ripple Ratio

≤ ±0.5%

Efficiency

≥ 95%

Power Factor

≥ 0.99 (above 50% load)

Harmonic Content (THD)

≤ 5% (above 50% load)

HMI

7-inch high-brightness color touch screen

Charging Mode

Automatic full / Fixed power / Fixed amount / Fixed time

Charging Method

Swipe card / Password / Scan code / App / EVCCID/MAC Vehicle (EN 15118)

Mode of Payment

Credit card / Scan code

Operation Mode

Offline no billing / Offline billing / Online billing

Communication Protocol

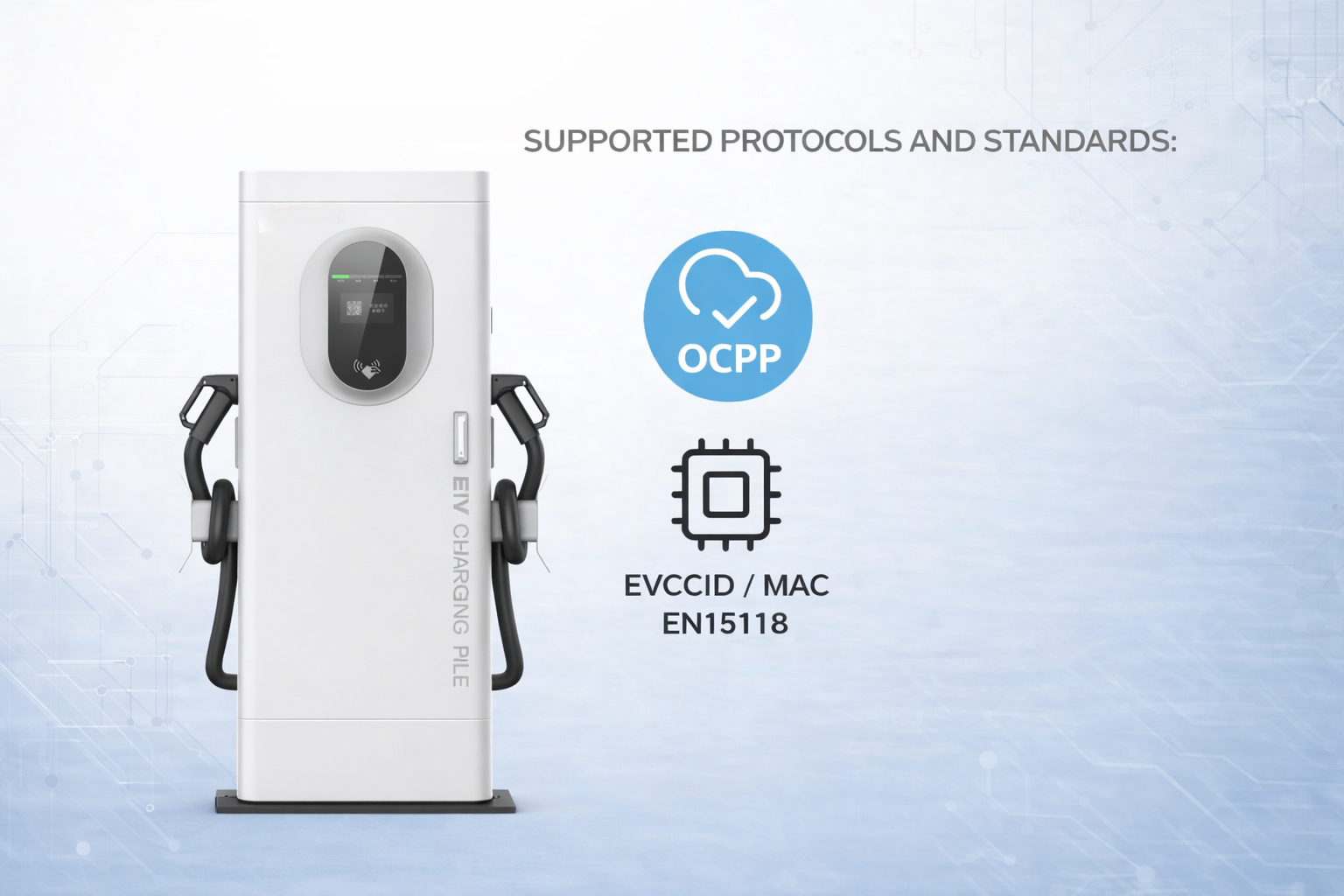

OCPP 1.6J

Network Connection

Ethernet / 4G / WiFi (optional)

Safety Functions

Charging gun temperature detection, overvoltage protection, under voltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection

Working Temperature

-30 °C to +50 °C

Working Humidity

5%–95% non-condensing

Working Altitude

< 2000 m

Ingress Protection

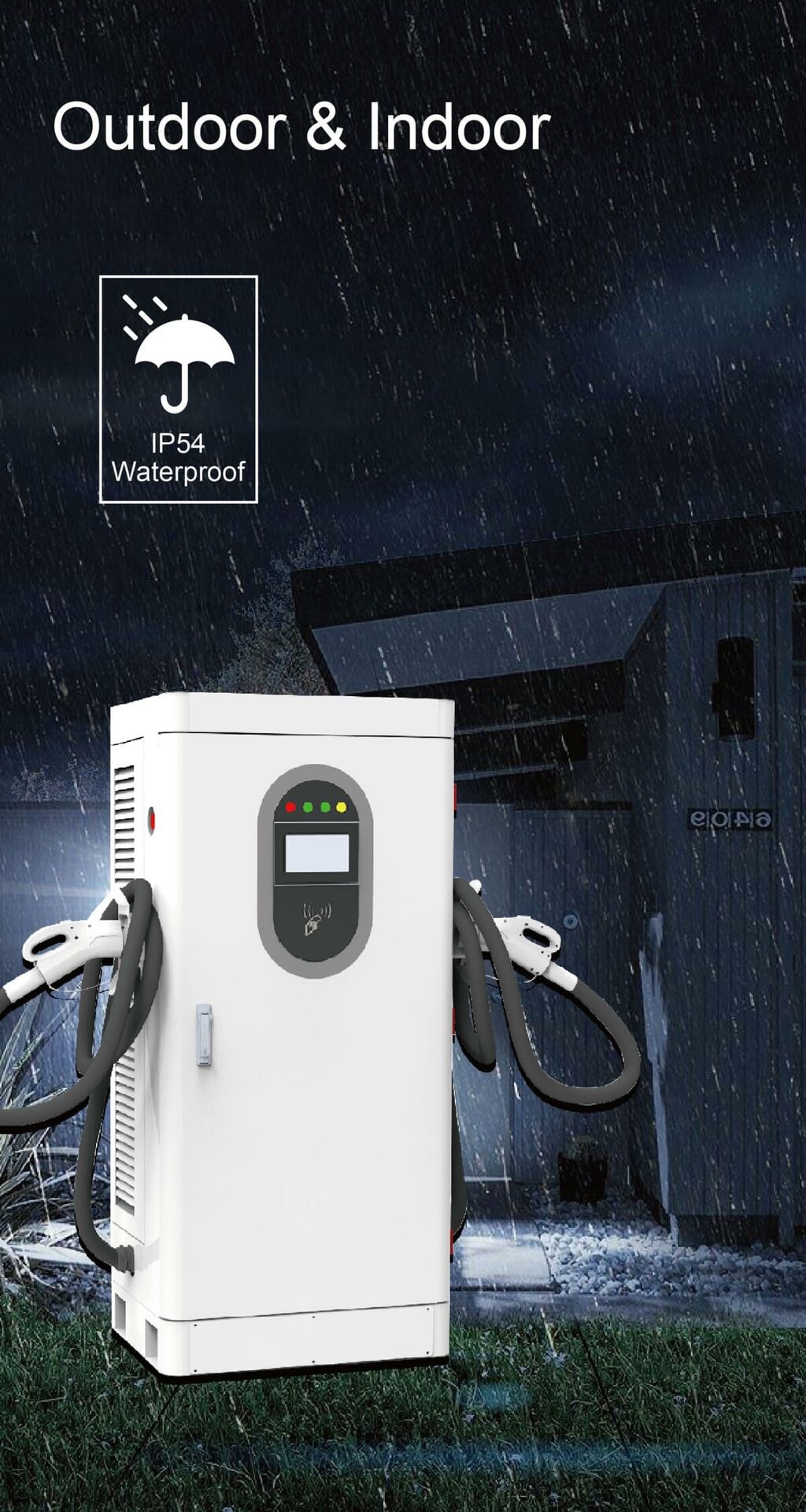

IP54

Cooling Method

Air-cooled

Noise Level

≤ 60 dB

MTBF

30,000 hours
