DOBRATEH 142kW Integrated AC/DC Charging Station

No items found.

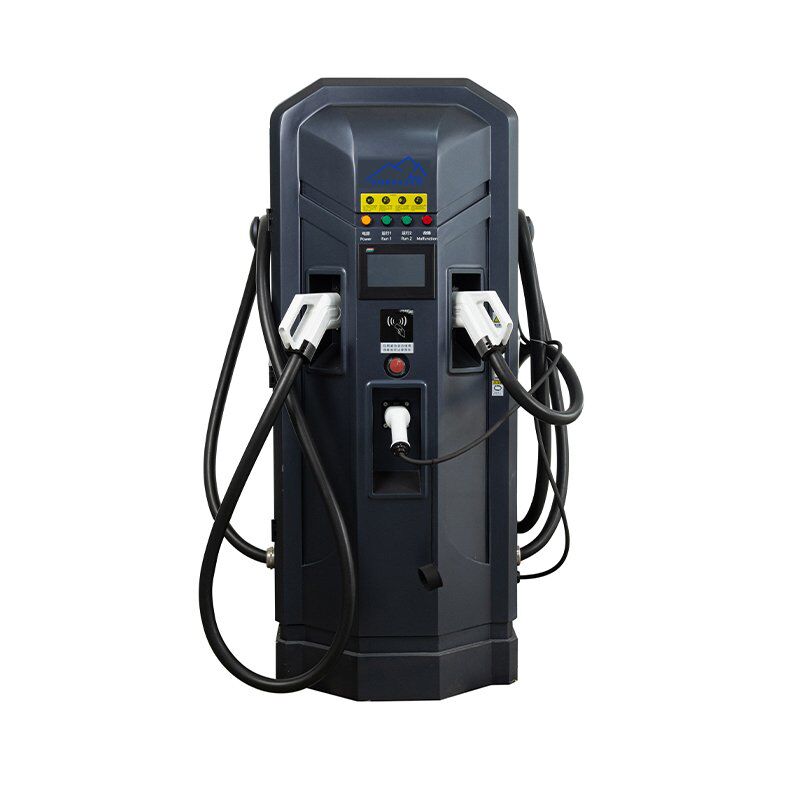

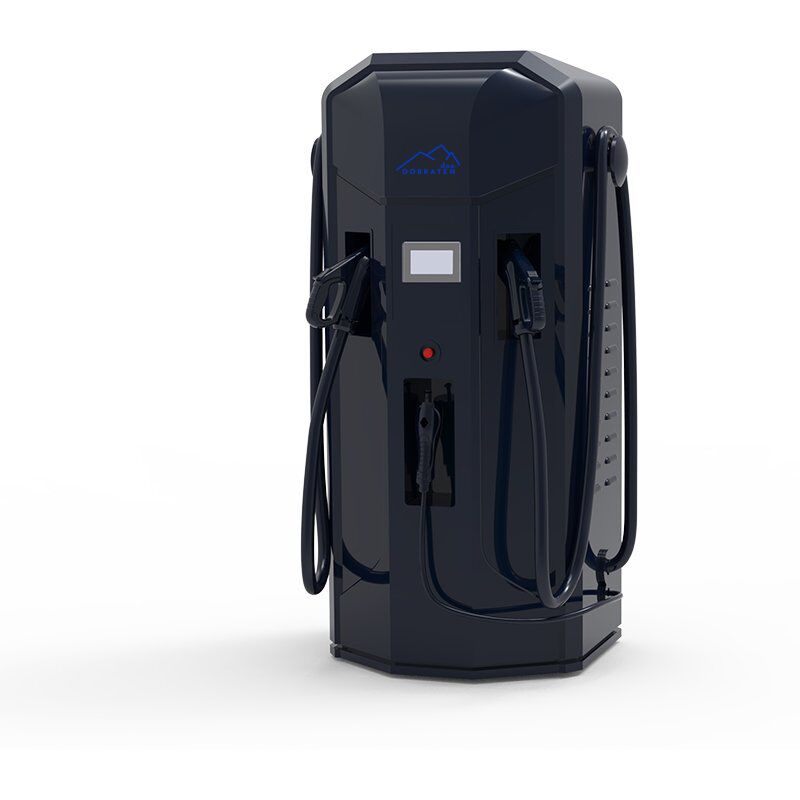

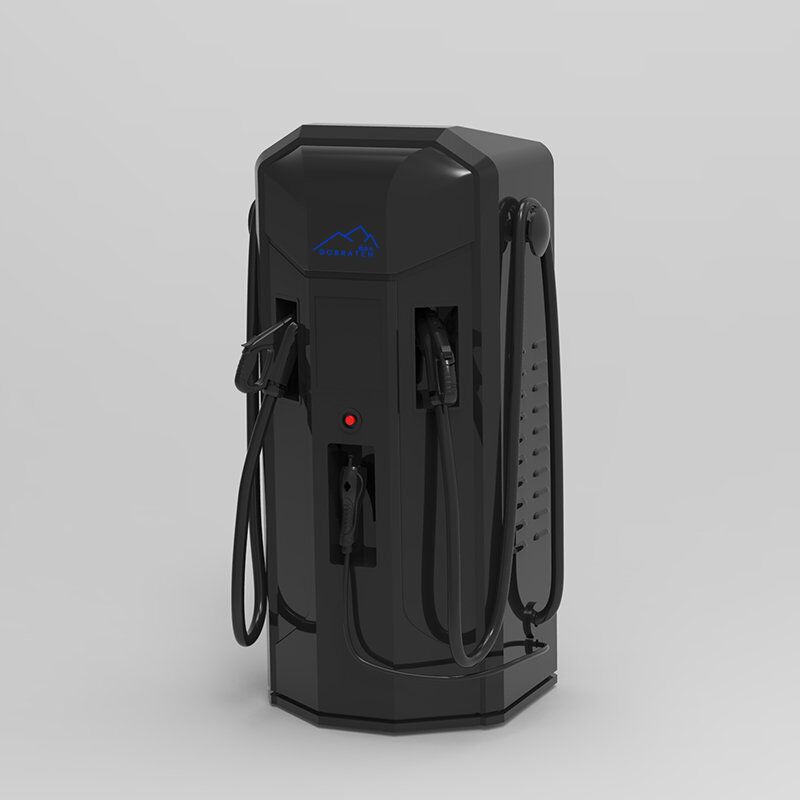

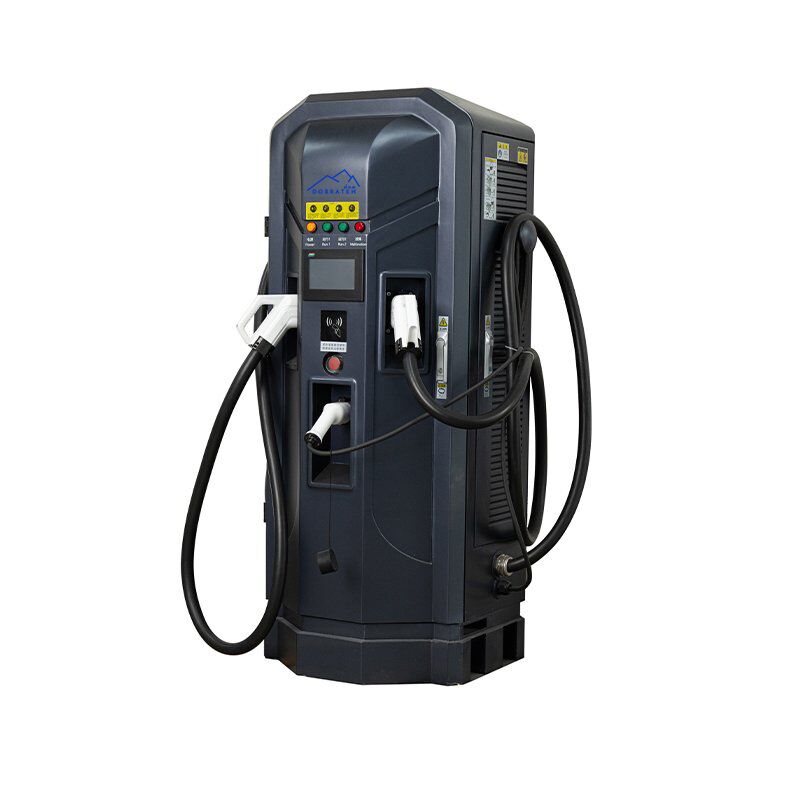

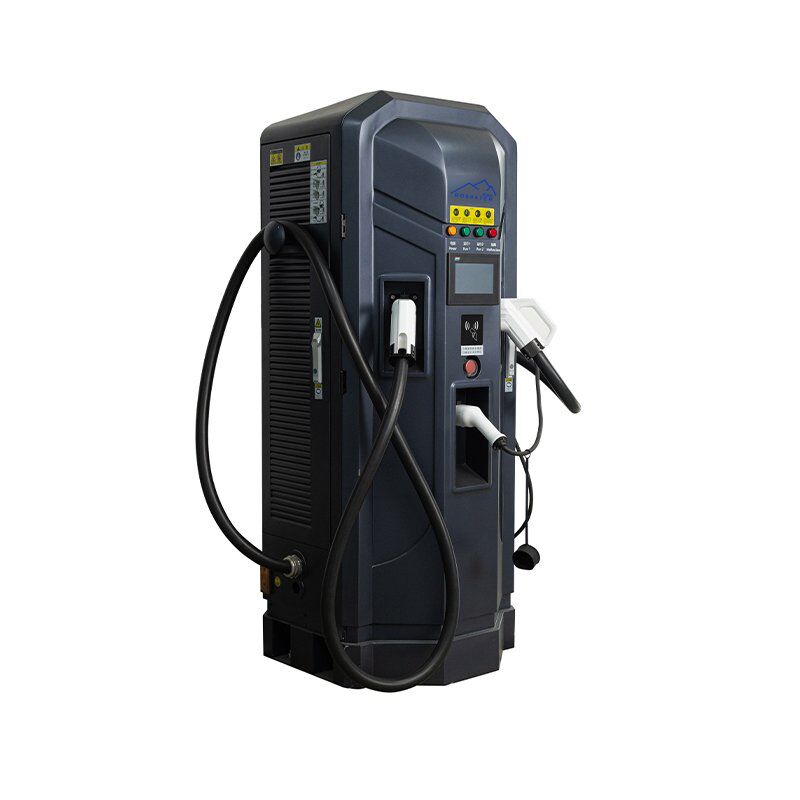

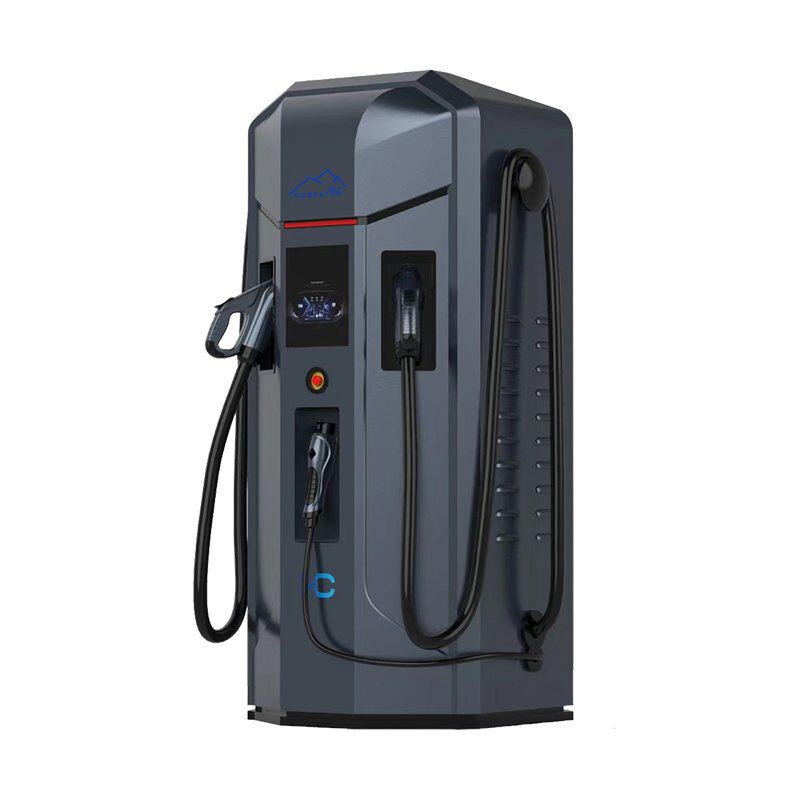

DOBRATEH 142kW Integrated AC/DC Charging Station

The Integrated DC EV Charger Station is suitable for city-specific charging stations(Bus, taxi, official vehicle, sanitation vehicle, logistics vehicle, etc.) City public charging station (Private car, commuter car, bus)Various parking lots in urban residential quarters, shopping plazas, power business places, etc.; Inter-city expressway charging stations and other occasions that require DC fast charging, It is especially suitable for rapid deployment under limited site conditions.

Product Parameters
Details
Model No. AF-DC-142-Y-C-OOO-H
142 kW
Specification Rated Power CCS / CHAdeMO 60 kW CCS / CHAdeMO 60 kW Type 2 – 22 kW
Charging Device Installation Method Vertical
Feeding Method Bottom in and out, 3P + N + PE
Equipment Dimension 1735 × 705 × 570 mm
Input Voltage AC380V ±15%
Input Frequency 50 ±10 Hz
Output Voltage 200–(750)1000 VDC
Single Gun Output Current DC: 0–200 A / AC: 32 A
Cable Length 5 m (optional)
Metering Accuracy 0.5 Level
Electrical Indicators Current Limit Protection Value ≥110%
Voltage Stabilization Accuracy ≤±0.5%
Current Stabilization Accuracy ≤±1%
Ripple Ratio ≤±0.5%
Efficiency ≥94.5%
Power Factor ≥0.99 (above 50% load)
Harmonic Content (THD) ≤5% (above 50% load)
Functional Design HMI 7-inch high-brightness color touch screen
Charging Mode Plug & Charge / Automatic full charge / Fixed energy / Fixed amount / Fixed time
Charging Method NFC (Swipe to charge), Scan QR code, Password
Mode of Payment RFID, QR code, Credit card, Password, APP
Network Ethernet, 4G, LTE, Wi-Fi 802.11 b/g/n (Optional, 2.4/5 GHz)
Safety Design Operative Norm EN IEC 62196-1:2022; EN IEC 62196-3:2014; EN IEC 61851-1:2019; EN IEC 61851-23:2014; EN IEC 61851-21-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021; TÜV (DIN SPEC 70121/12.14, DIN SPEC 70122/11.18)

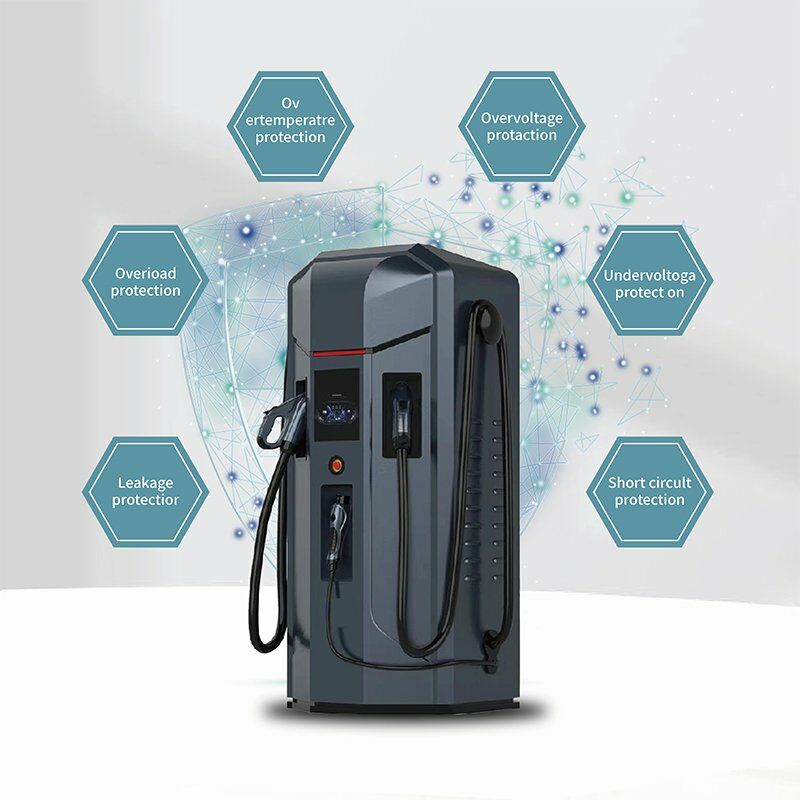

Safety Function Charging gun temperature detection, over-voltage protection, under-voltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection.
Environmental Indicators Working Temperature -35 ~ +55°C
Working Humidity 5%–95% non-condensing frost
Working Altitude ≤2000 m
Ingress Protection IP54
Cooling Method Forced air cooling
Noise Control ≤60 dB
MTBF 100,000 hours

Protection Functions

  • Input and output of the EV charger station are electrically isolated.
  • The output includes a back-feed prevention device to stop the vehicle battery pack from charging the charger’s output filter capacitor and to prevent instantaneous high current at the charger’s output terminal when the battery pack is connected.
  • Specify the charger’s voltage rating and insulation class; ensure compliance with applicable “Electric Vehicle Conductive Charging Device” regulations.
  • Designed and manufactured according to IEC 61851-1:2017 and IEC 62196-2:2016.

‍
