DOBRATEH DC Charge Connector

No items found.

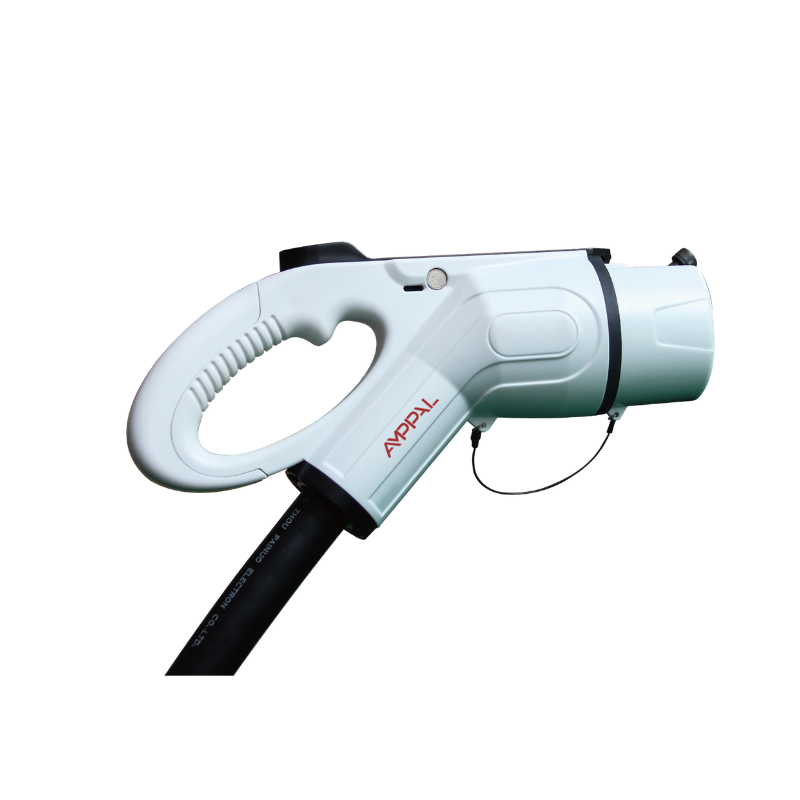

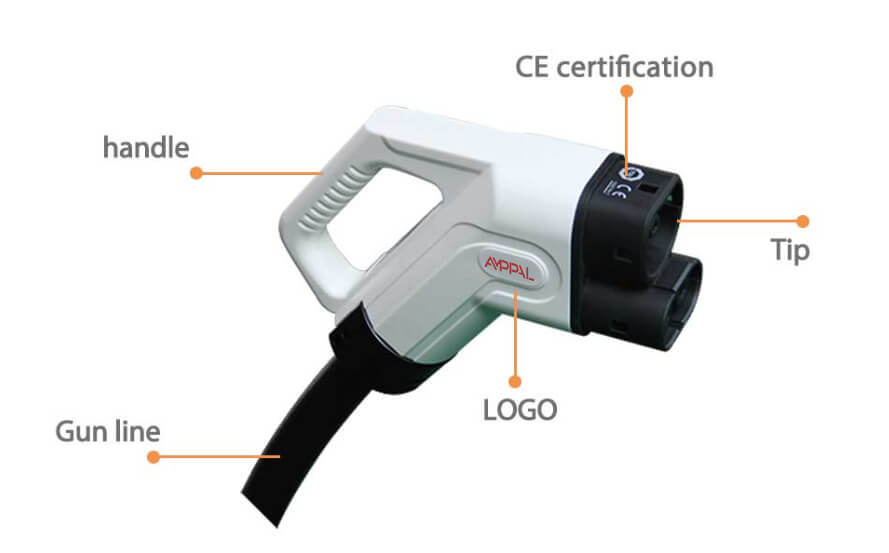

DC Charge Connector

Product Characteristics

Housing Material: Thermoplastic

Flame retardant grade: UL94V-0

Terminals: copper alloy, silver plated on the surface

‍

Product Parameters
Details
Product Name DC Charge Connector
Rated Current 80A / 125A / 200A / 250A
Rated Voltage 400 / 750VDC
Contact Resistance ≤0.5 mΩ
Pressure Resistance 3200V
Number of Signal Contacts <50K
Signal Contact Temperature Rise ≤70N
Mechanical Life No-load plugging and unplugging >1000 times
Working Temperature -35 ~ +55°C
Impact Resistance Can withstand a drop of 1 meter and being crushed by a 2-ton vehicle
Insulation Resistance ≥2000 MΩ
Protection Level IP67
Pin Aluminum alloy, surface silver-plated + top insulation
Shell Material Thermoplastic, flame-retardant grade UL94 V-0
Seals Rubber or silicone

‍

Rated current Cable specification Remarks
63A /80A 2X16mm²+16mm²+3X2X0.75mm²TPU,φ26/TPE,φ32 Shell color: white

Cable color: black
125A Single phase 2X35mm²+25mm+²3X2X0.75mm²TPU,φ31.5/TPE,φ34
160A Single phase 2X50mm²+25mm3X2X0.75mm²TPU, φ34.5/TPE,φ37
200A Single phase 2X70mm²+25mm²3X2X0.75mm²TPU, φ37/TPE,φ40

‍
