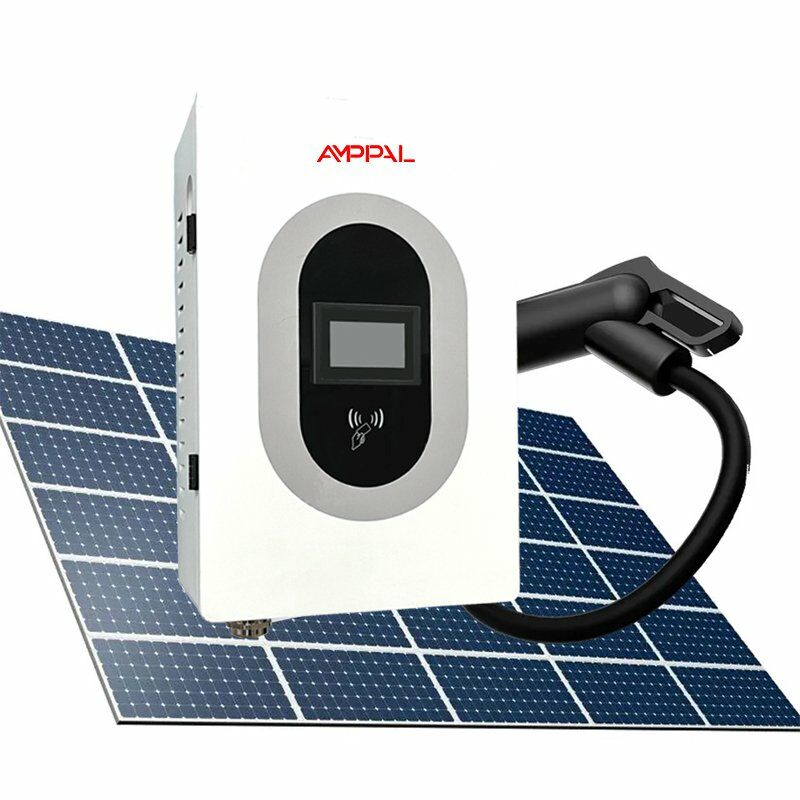

Electric Vehicle DC Charging Station 20kW / 30kW / 40kW

Model No.

AF-DC-020-B-A-O-2/3/4/5/6-H

AF-DC-030-B-A-O-2/3/4/5/6-H

AF-DC-040-B-A-O-2/3/4/5/6-H

Application

Home / Office / Commercial / Offline Use

Rated Power

20 kW

30 kW

40 kW

Output Current

0–67 A

0–100 A

0–133 A

Installation Method

Wall-mounted / Floor-standed

Feeding Method

Bottom in and out

Equipment Dimensions

410 × 216 × 620 mm

Input Voltage

AC 380 V ±15%

Input Frequency

50 ±10 Hz

Output Voltage

200–(750)1000 V DC

Cable Length

5 m (optional)

Metering Accuracy

Class 1.0

Current Limit Protection Value

≥ 110%

Voltage Stabilization Accuracy

≤ ±0.5%

Current Stabilization Accuracy

≤ ±1%

Ripple Ratio

≤ ±0.5%

Efficiency

≥ 95%

Power Factor

≥ 0.99 (above 50% load)

Harmonic Content (THD)

≤ 5% (above 50% load)

HMI

4.3-inch high-brightness color touch screen

Charging Mode

Automatic full / Fixed power / Fixed amount / Fixed time

Network Connection

Ethernet / 4G / WiFi (optional)

Charging Method

Swipe card / Scan code / Password / App / EVCCID/MAC Vehicle (EN 15118)

Mode of Payment

Credit card / Scan code / Password

Operation Mode

Offline no billing / Offline billing / Online billing

Communication Protocol

OCPP 1.6J

Safety Functions

Charging gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, reverse polarity protection, lightning protection, emergency stop protection, leakage protection

Working Temperature

-30 °C to +50 °C

Working Humidity

5%–95% non-condensing

Working Altitude

< 2000 m

Ingress Protection

IP54

Cooling Method

Air-cooled

Noise Level

≤ 60 dB

MTBF

30,000 hours
